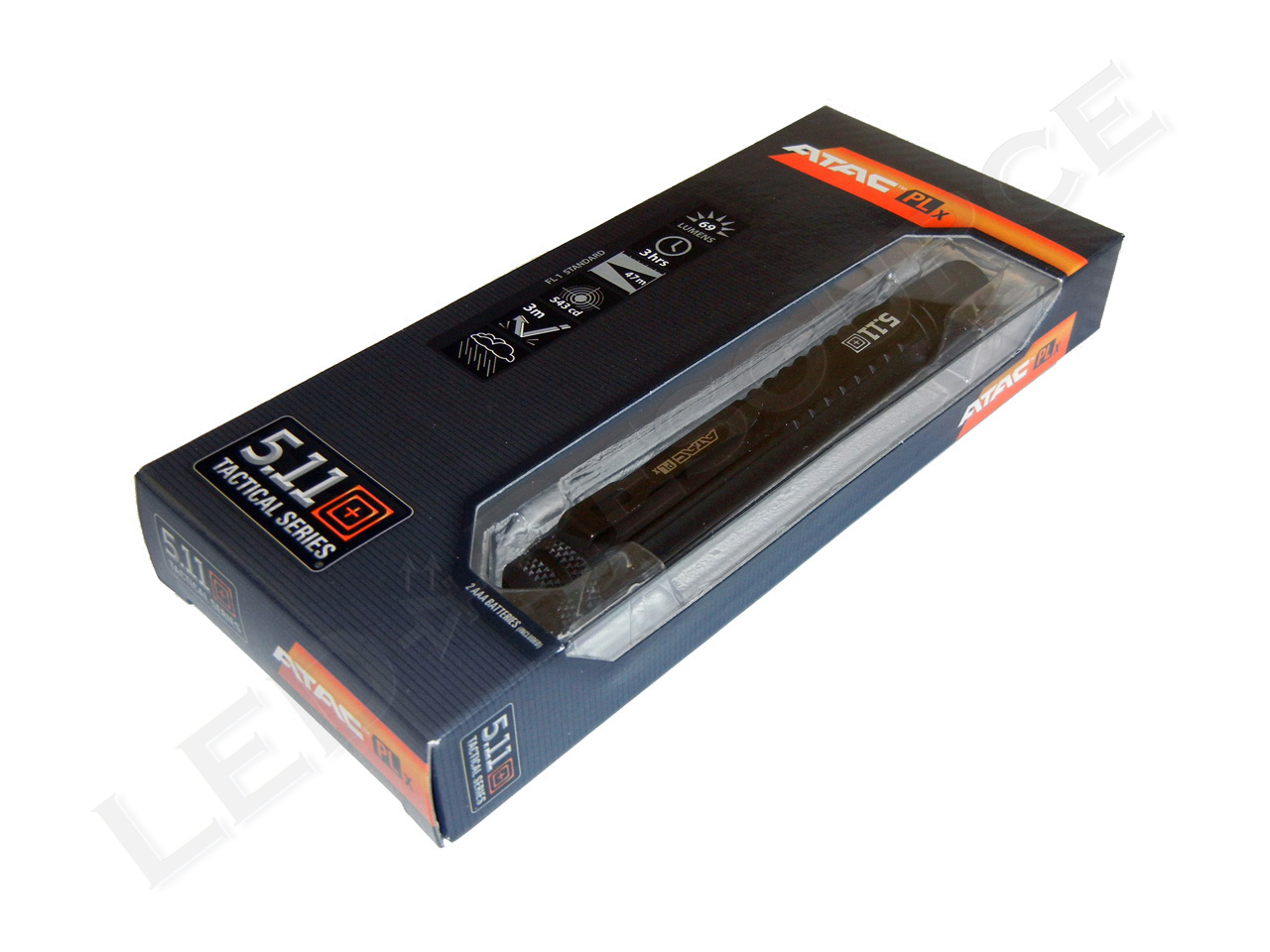

FL1 Standard – these specifications can be found on the packaging of most flashlights today. What do these specifications mean for you, and how can you interpret this information? Since we started including runtime graphs in our reviews, we’ve gotten a lot of questions about the ANSI FL1 Standard, so this article is intended to give you a better understanding of the technical aspects of flashlight performance.

Quick Links

ANSI/NEMA FL 1-2009 Standard

Commonly abbreviated as the ANSI FL1 Standard, the ANSI/NEMA FL 1-2009 Standard is a set of flashlight performance guidelines. Before the introduction of these standards, you may have seen variety of phrases on flashlight packaging, such as these:

  • “3W LED” was a common term used when high performance LEDs, such as the Luxeon, were first introduced. LEDs have varying efficiencies and rarely operate at the rated power, so this doesn’t really have any meaning.
  • “1 million candlepower” (or any other multiple of a million), is often seen on lanterns and spotlights. A million of anything is impressive, but how bright is one million candles?
  • “High-flux LED” is really just a fancy way to say that the LED is bright, but even if you’re an engineer, it still doesn’t have much meaning to it.

With the FL1 Standard, ambiguous marketing phrases are a thing of the past, and direct comparisons can be made between flashlights from different manufacturers. Adherence to the FL1 Standard is voluntary, although the vast majority of manufacturers have adopted the standard. Here’s how the ratings are defined:

Light Output [Lumen]
Light output is a measurement of luminous flux using an integrating sphere. The unit of luminous flux, lumen, is a measurement of energy.

Peak Beam Intensity [Candela]
Peak beam intensity is a measurement of luminous intensity at the middle of the flashlight beam. The unit of luminous intensity, candela, is a measurement of energy.

Beam Distance [Meter]
Beam distance is defined as the distance from the flashlight where illuminance is equivalent to a full moon on a clear night.

Runtime [Hours]
Runtime is defined as the amount of time, rounded to the nearest quarter hour, until output drops below 10%.

Water Resistance [IPX Rating]
Water resistance is stated using the IP rating system, and three ratings are used.

  • IPX4 – water-resistant, or water splashed from all directions
  • IPX7 – water-proof, or temporary submersion at 1 meter for 30 minutes
  • IPX8 – submersible, or continuous submersion at some specified depth for 4 hours

Impact Resistance [Meter]
Impact resistance is tested with drops onto a concrete surface at the specified height with all intended accessories, including batteries, installed.

Interpreting the FL1 Standard

Now that we have defined these ratings, let’s see what the not-so-obvious ratings mean.

Light Output vs. Peak Beam Intensity
Although higher output seems like it should correspond to higher intensity, a light with more lumens is not necessarily “brighter.” Here’s why:

  • Light output is determined by the total amount of light coming out-the-front (OTF) of the flashlight and is related to the LED’s efficiency and how much power it uses.
  • Peak beam intensity represents brightness as perceived by the human eye and is related to how the beam is focused by the optical system (typically a reflector, lens, or optic).

So, which is more important? Light output can be thought of as “raw material,” but it’s how that light is dispersed that determines usefulness. For example, a fluorescent lamp has high output but low intensity (a dispersed, or flood, beam), whereas a laser and has low output but high intensity (a focused, or spot, beam).

Both are useful for their intended purposes, but neither would make a good flashlight. Thus, the candela per lumen (cd/lm) ratio can be used to determine if a flashlight has a spot- or flood-type beam.

  • Spot beams (large cd/lm ratio) are great for lighting up distant objects, but at close range, the hotspot may be blindingly bright.
  • Flood beams (small cd/lm ratio) are great for close work, but for distant objects, there’s not going to be much light.

As a reference, well-focused spot beams can be over 100 cd/lm, tactical flashlights are typically between 20-100 cd/lm, and work lights are less than 10 cd/lm.

Peak Beam Intensity vs. Perceived Brightness

Brightness, as we think of it in everyday terms, is actually a difficult measurement to grasp numerically. While 10,000cd will appear brighter than 5,000cd, it will not appear twice as bright. The reason is because our perception of brightness is non-linear, meaning that “twice the intensity” will not appear “twice as bright.”

Keeping this non-linear relationship in mind is important for making Peak Beam Intensity comparisons, and a rough estimate is that for a light to appear twice as bright to the eye, four times the intensity is required.

Beam Distance
Beam distance is calculated from peak beam intensity, so there is actually no new information here. In addition, a full moon on a clear night is not really a useful amount of light, so don’t put too much weight on this specification.

Limitations of the FL1 Standard

While the FL1 Standard is a big step forward, no standard is free of issues, and there are some limitations to the FL1 Standard. Knowing the limitations of a standard is just as important as knowing what the standard means, and the biggest limitation of the FL1 Standard is the runtime rating.

Runtime
Here’s a trick question: when is a 1.5V battery actually 1.5 volts? Ideally, always, but an alkaline battery’s voltage decreases as it discharges, so it would almost never be 1.5 volts. This is why LED flashlights require complex electronics, but not all flashlights behave the same way. To capture this behavior, runtime must be presented as a graph, which is not required by the FL1 Standard. Take this sample data from our runtime tests:

This runtime chart tells us the following information:

  • Flashlight 2 has the shortest runtime, but it is consistent and within 10% of the initial brightness.
  • Flashlight 1 has slightly longer runtime than Flashlight 2, but brightness (which is mostly less than 50%) is continuously decreasing.
  • Flashlight 3 has a long runtime that is maintained at 50% brightness.

Based on the runtime graph, we can say that flashlight 2 is a better choice than flashlight 1, and flashlight 3 is the good choice for extended runtime (in fact, flashlight 1 and 2 are actually the same flashlight using different batteries, but that’s the topic for another article).

These observations would not be possible with just a runtime rating, which is why conduct our own independent ANSI FL1-compliant testing and include runtime graphs in our reviews to supplement the FL1 Standard Runtime. For more information about our runtime tests, please click here.

Impact Resistance
While LEDs are reliable solid-state devices with no moving parts, electronic circuitry that regulates power to the LED tend not to be as durable. Occasional drops shouldn’t be an issue, but repeated stress can cause damage that may lead to erratic operation or failure. Our advice would be to treat LED flashlights like any other electronic device and avoid drops or other damage if possible.
