Maglite MAG-TAC LED Rechargeable Review

MAG-TAC_R_01An upgraded and rechargeable version of the Maglite MAG-TAC tactical flashlight, the new Maglite MAG-TAC Rechargeable has a maximum output of 543 lumens and can be charged in the USB-powered charging base. The MAG-TAC Rechargeable uses a lithium-phosphate battery, which charges in less than three hours and has a longer service life than regular lithium-ion batteries. Available with a plain bezel or crowned bezel, both versions include four modes – momentary, full power, power save, and strobe.

Key Specifications

  • Output: 543 lumens high, 112 lumens low
  • Intensity: 8,171 candela
  • Runtime: 2h 30min high, 4h 15min low
  • Battery: Lithium-Phosphate Rechargeable Battery
  • Length: 5.7″ (plain bezel), 5.8″ (crowned bezel)
  • Diameter: 1.1″
  • Weight with Batteries: 5.6 oz.
  • Colors: Black
  • Warranty: Limited Lifetime with $18 Handling Fee
  • MSRP: $135.99

Pricing & Contents

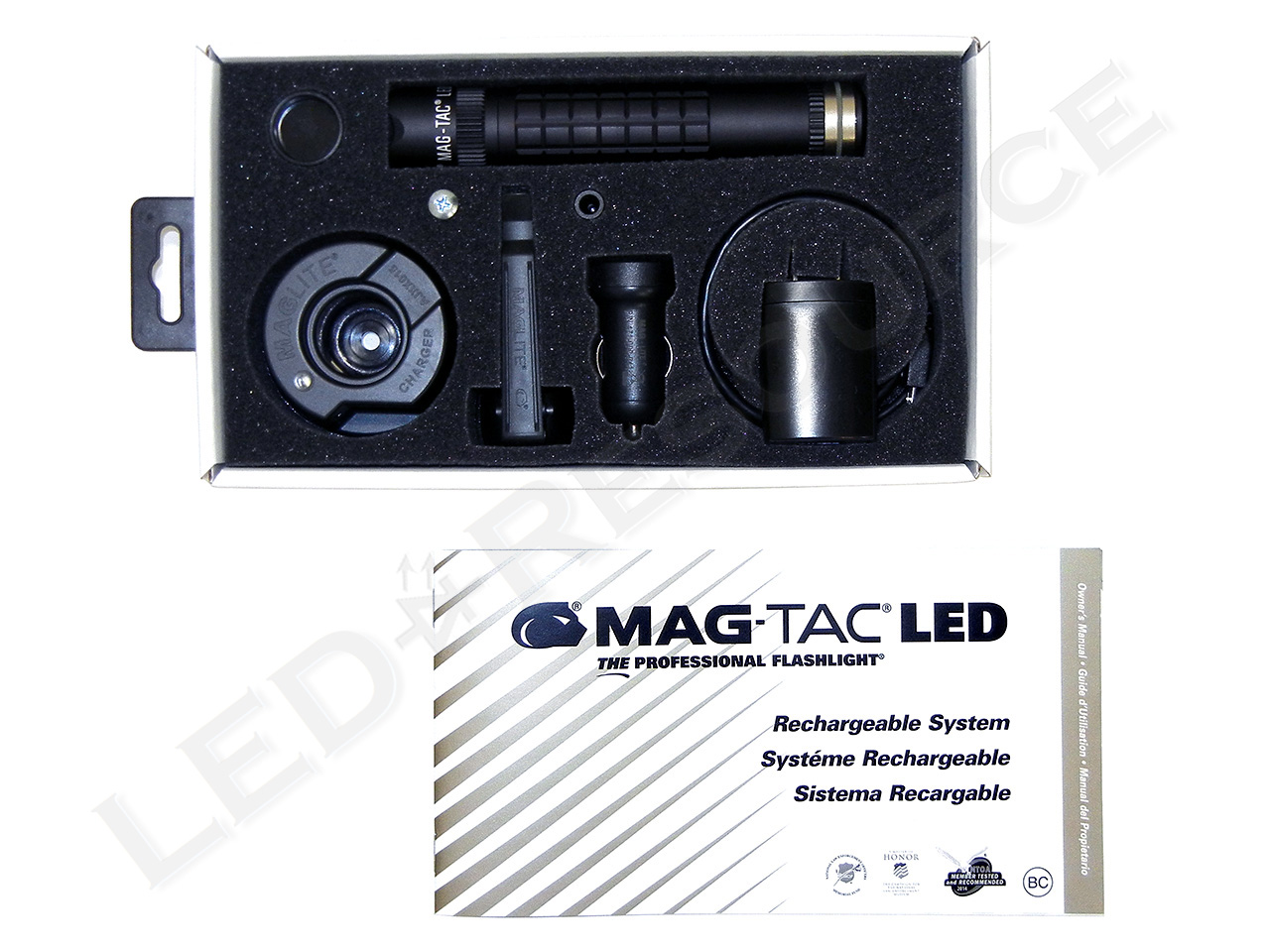

MSRP for the MAG-TAC Rechargeable is $135.99, and the light is available with either a plain or crowned bezel. Included in the box are: Maglite MAG-TAC Rechargeable, lithium-phosphate rechargeable battery (installed), charging cradle, mounting screw, Micro USB cable, AC adapter, DC car adapter, pocket clip, pocket clip cam lock tool, battery nut tool, and user manual.

MAG-TAC_R_02

Batteries

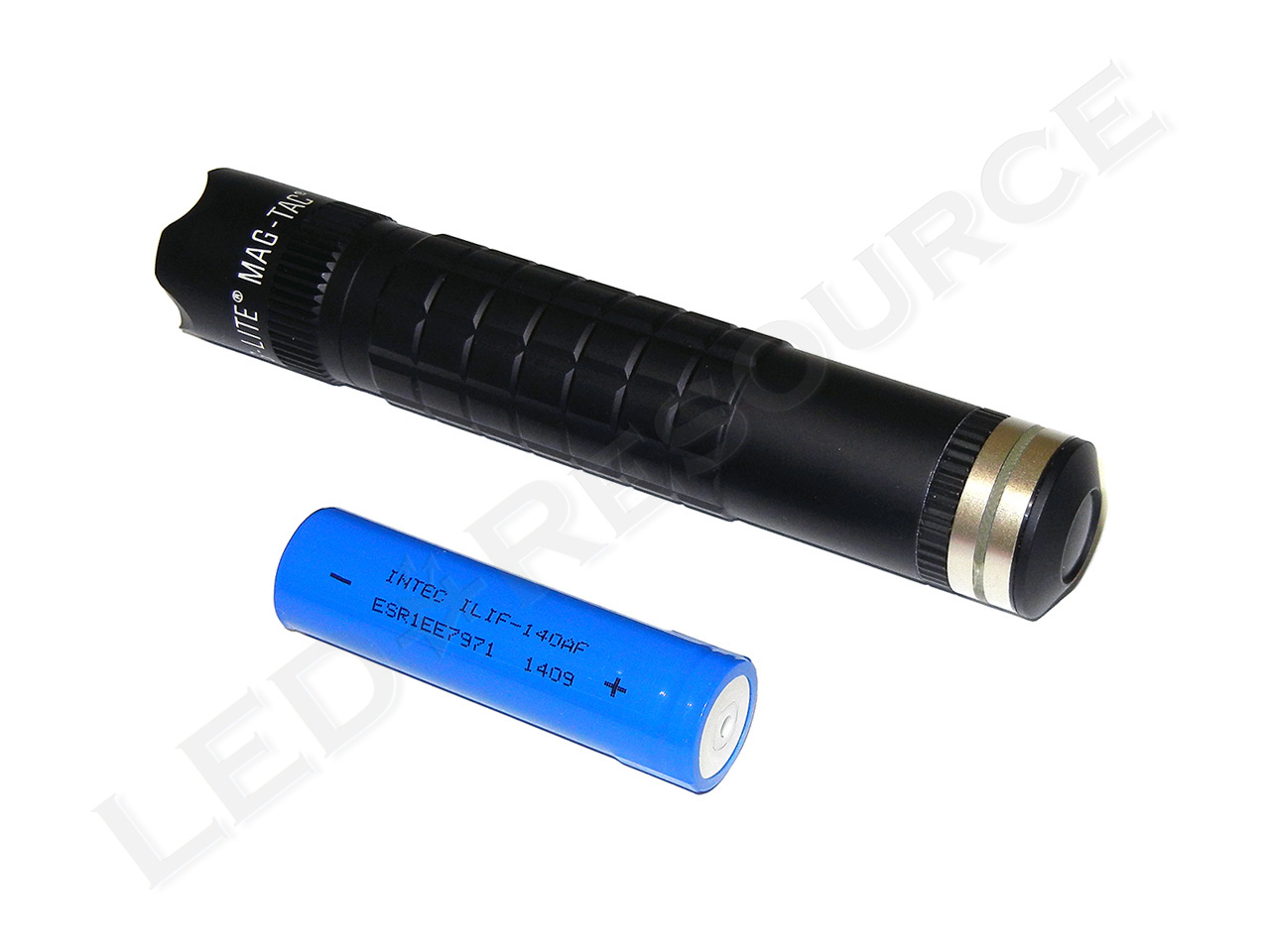

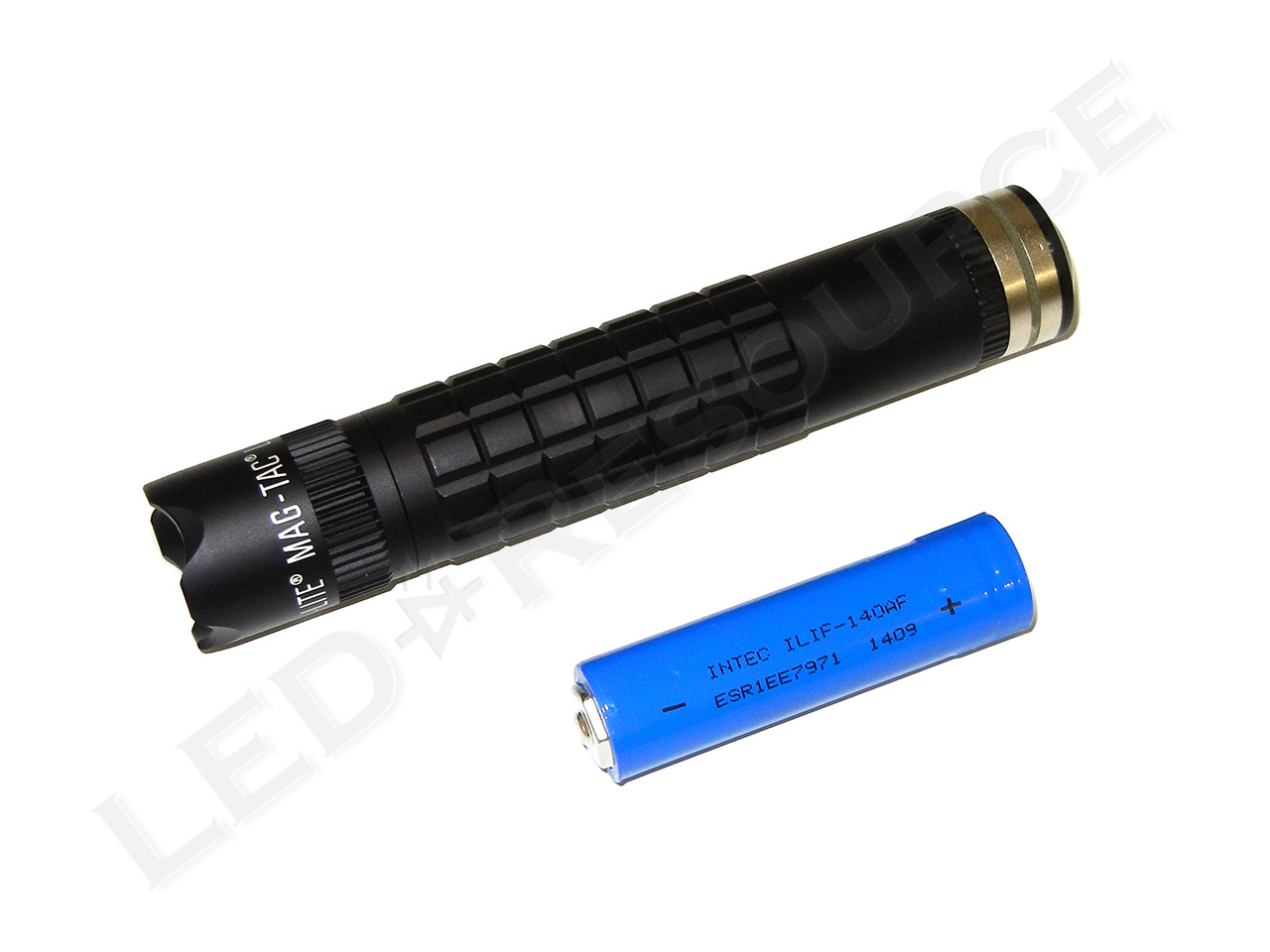

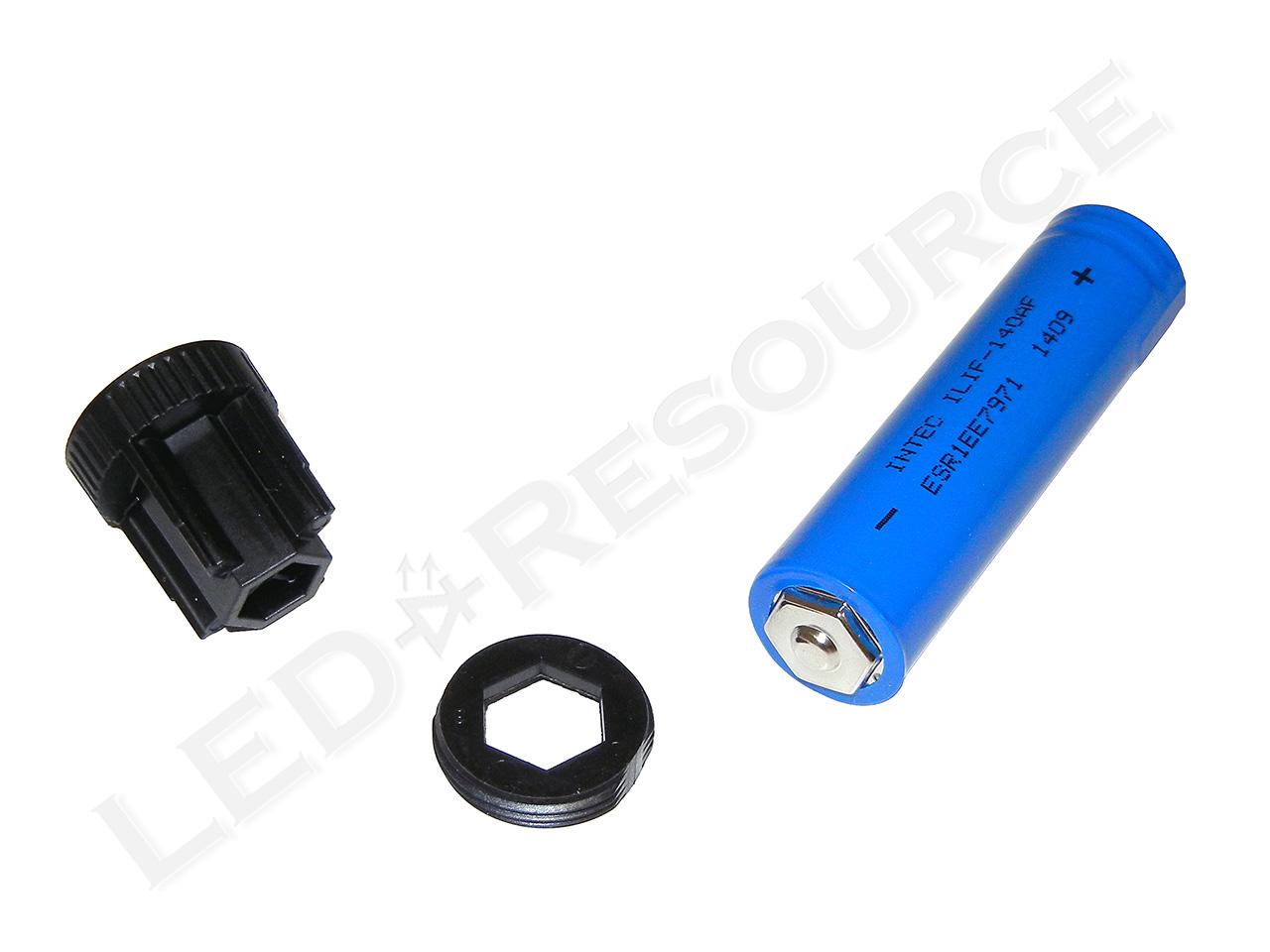

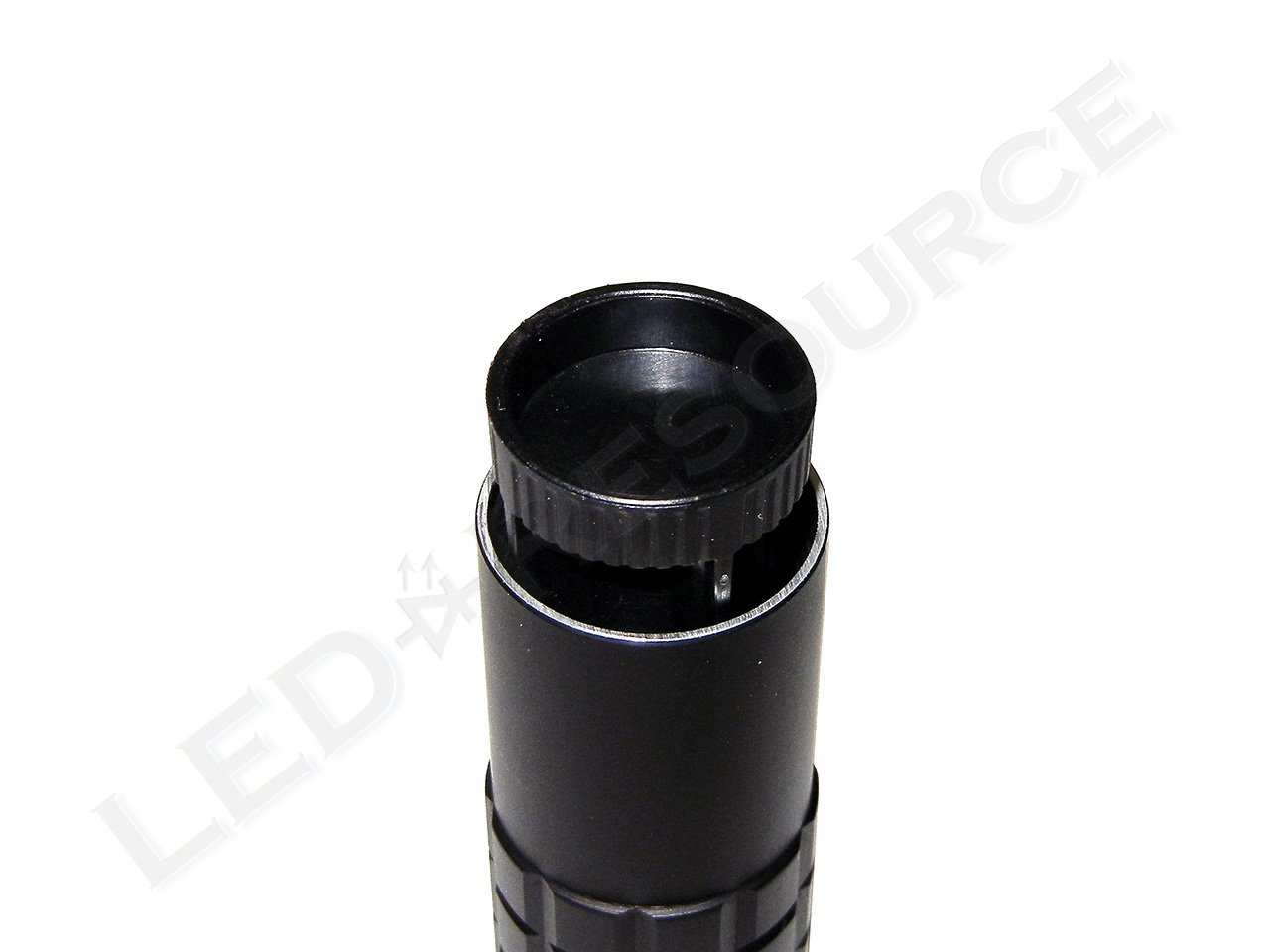

The MAG-TAC Rechargeable uses a proprietary 3.2V lithium-phosphate battery, which is estimated to be 1,400mAh (pending confirmation). A plastic nut holds the rechargeable battery in place, which can only be removed using the included battery nut tool or another battery. As such, the MAG-TAC Rechargeable cannot be used with primary lithium batteries.

MAG-TAC_R_03 MAG-TAC_R_04

MAG-TAC_R_05 MAG-TAC_R_06

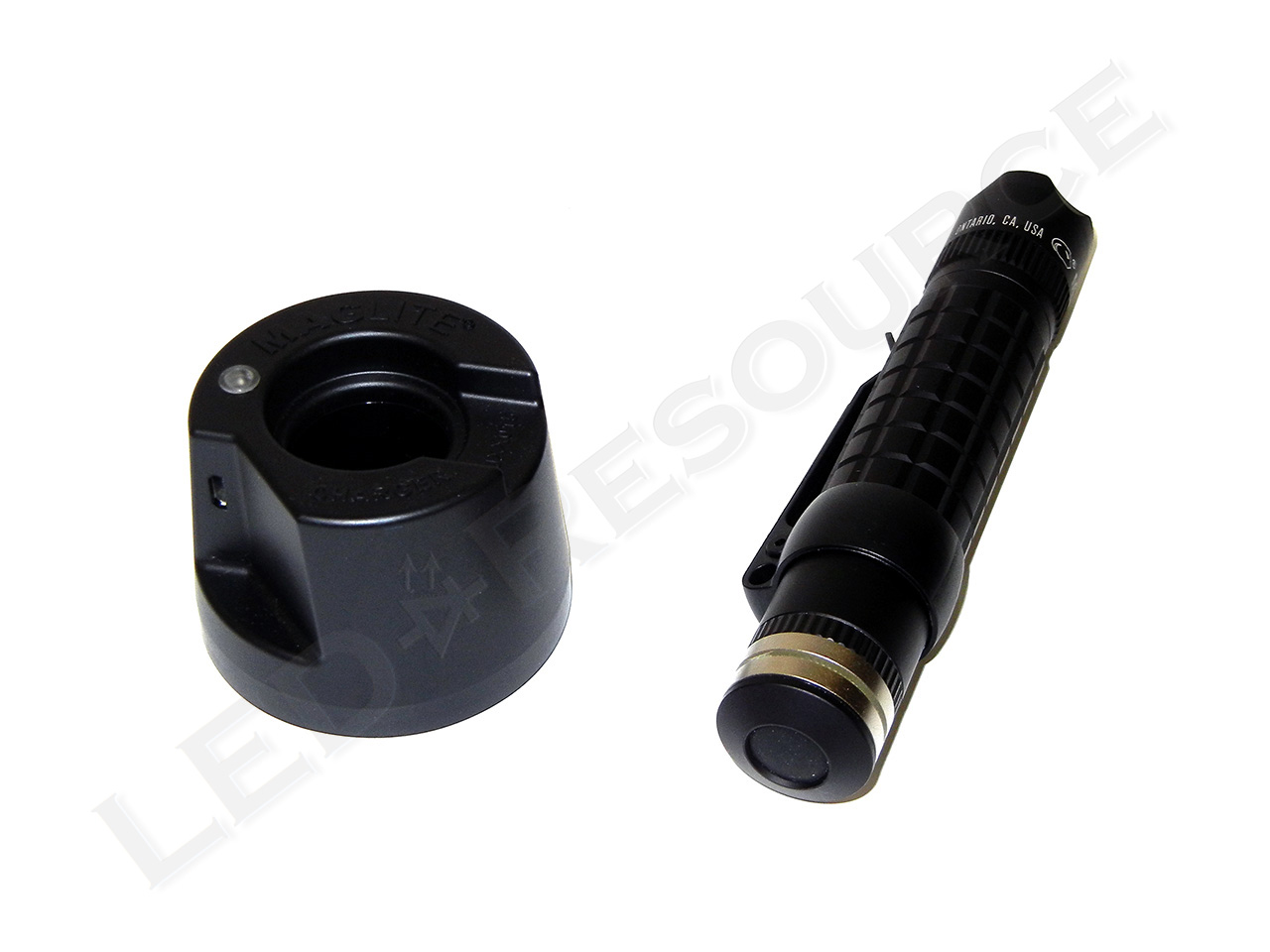

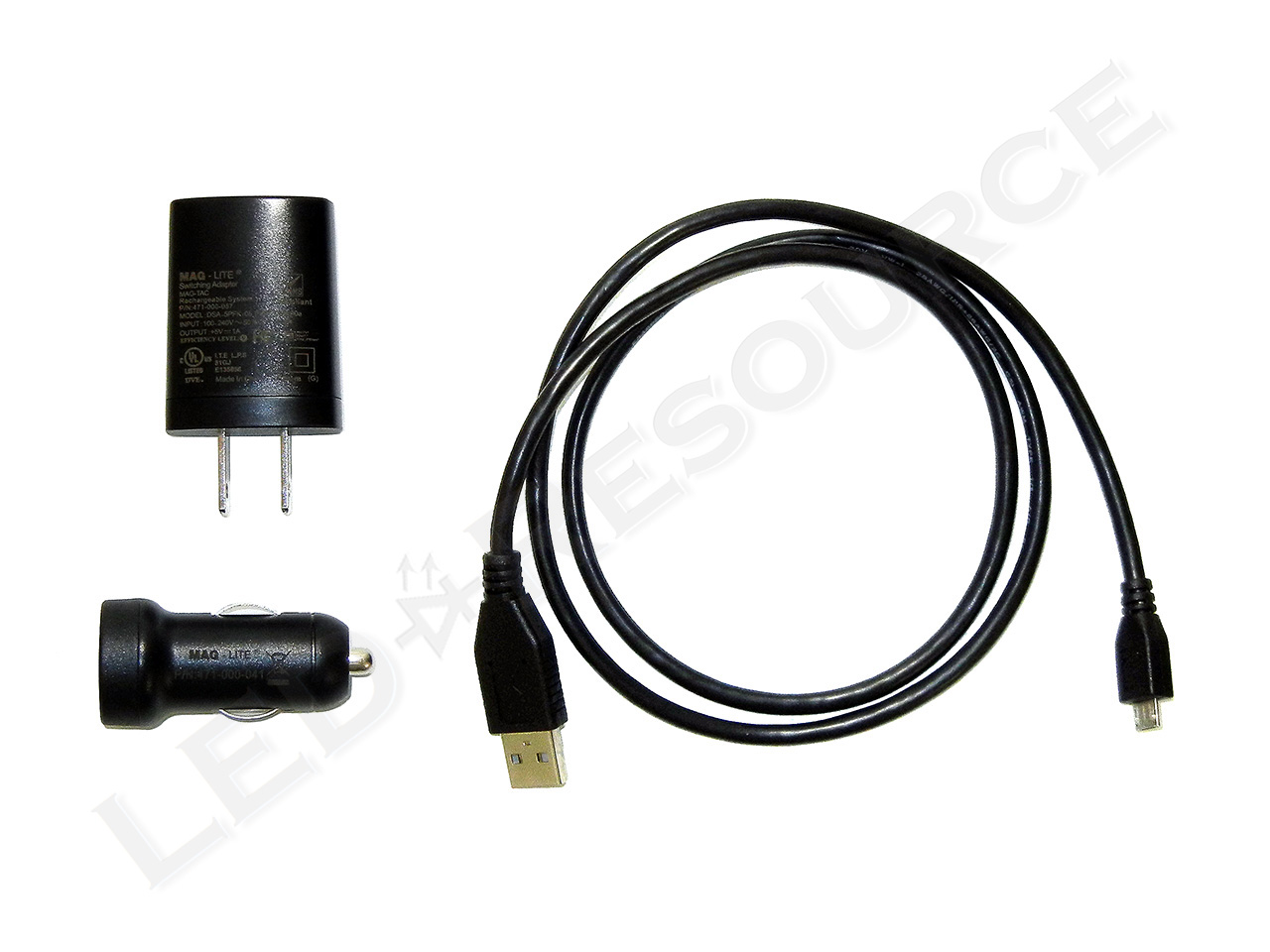

To charge the light, connect the Micro USB cable to a power source and insert the MAG-TAC Rechargeable into the charging cradle. Charging from a computer’s USB port is possible, but can take longer because some USB ports are limited to 500mA.

MAG-TAC_R_07 MAG-TAC_R_08

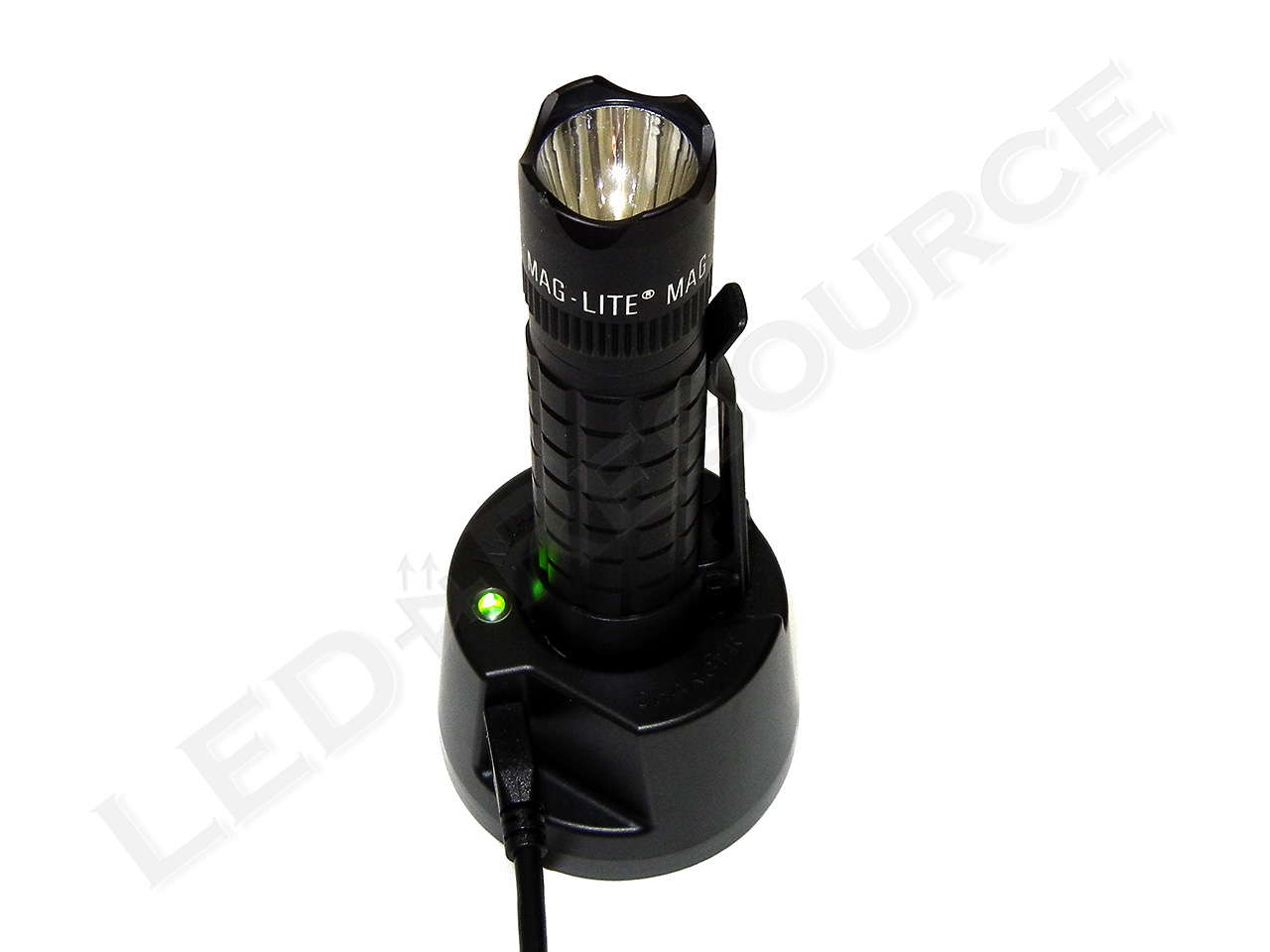

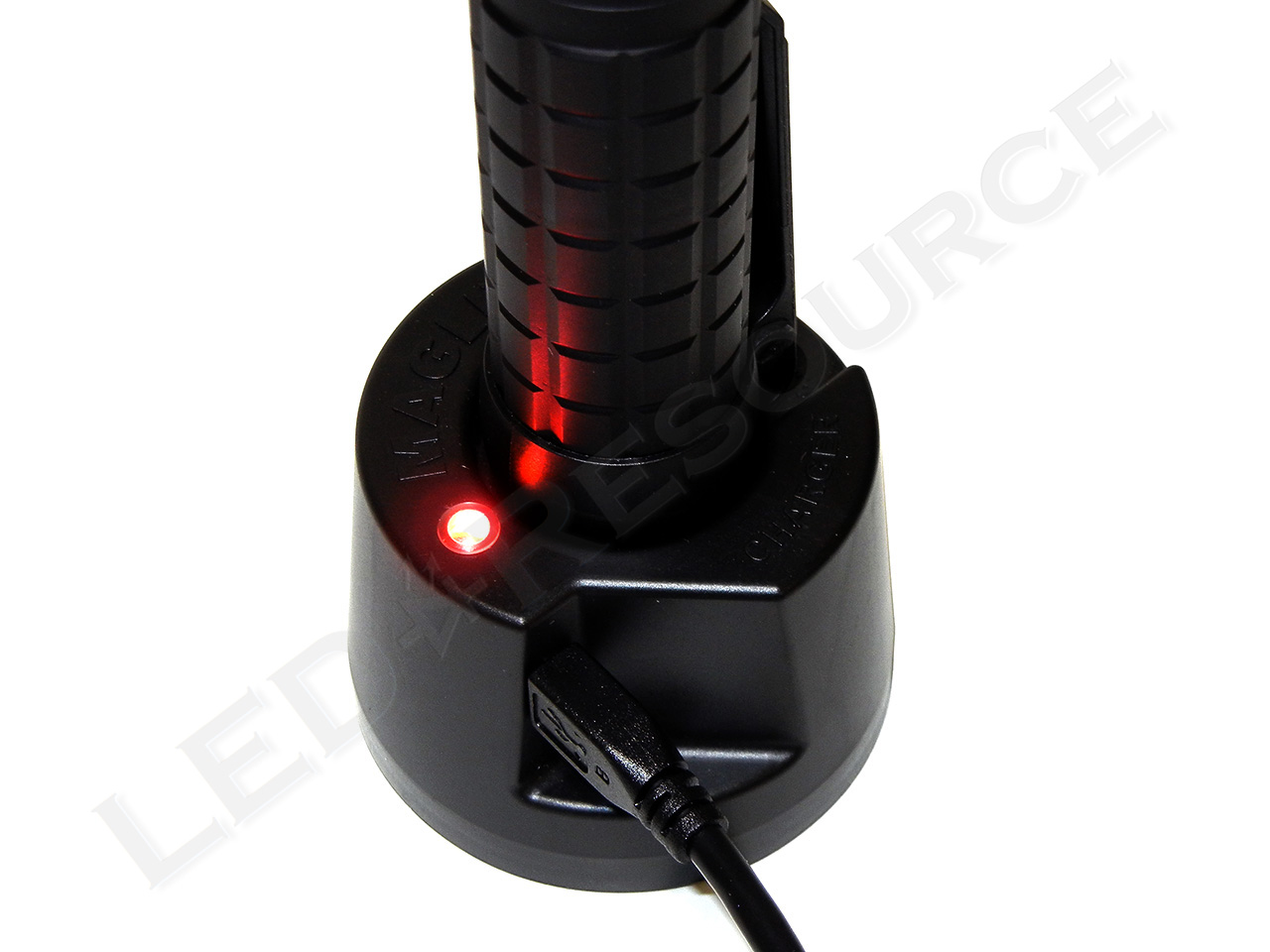

Full charge takes up to 2.5 hours, and the LED on the cradle indicates charge state:

  • Blinking Red: Fault. Battery terminals are shorted or other failure.
  • Red: Pre-Conditioning. Battery is dead.
  • Orange: Fast-Charge. Battery charge is low.
  • Blinking Green: Top-Off. Battery charge is at least 80%.
  • Green: Maintenance. Battery charge is 100%.

MAG-TAC_R_09 MAG-TAC_R_10

The Light

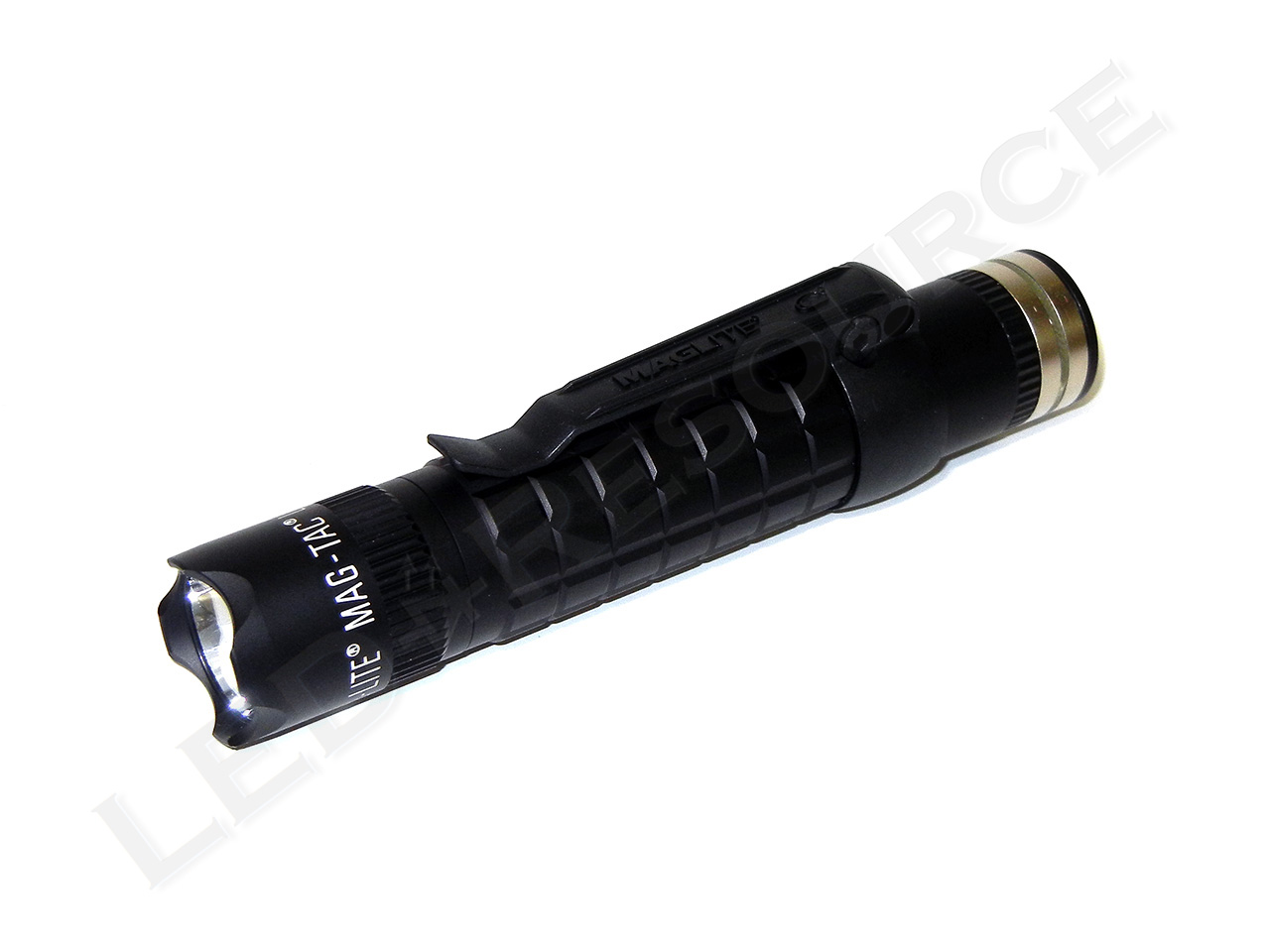

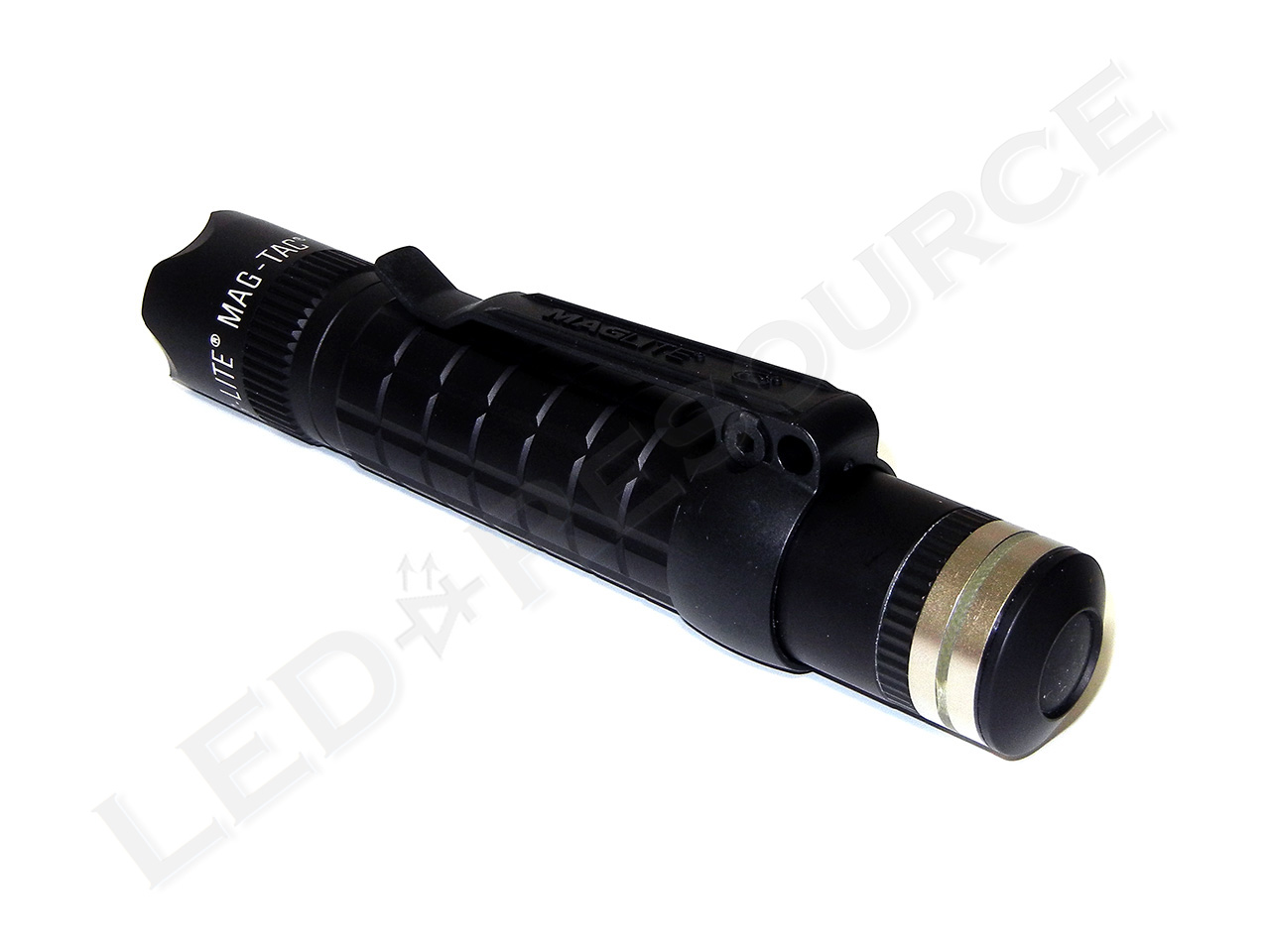

The MAG-TAC Rechargeable has a length of 5.7” (plain bezel) to 5.8” (crowned bezel), which is 0.5” longer than the respective non-rechargeable model to accommodate the larger rechargeable battery and charging contacts. Like the MAG-TAC, the aluminum body is type-III anodized with a matte finish.

MAG-TAC_R_11 MAG-TAC_R_12

Head

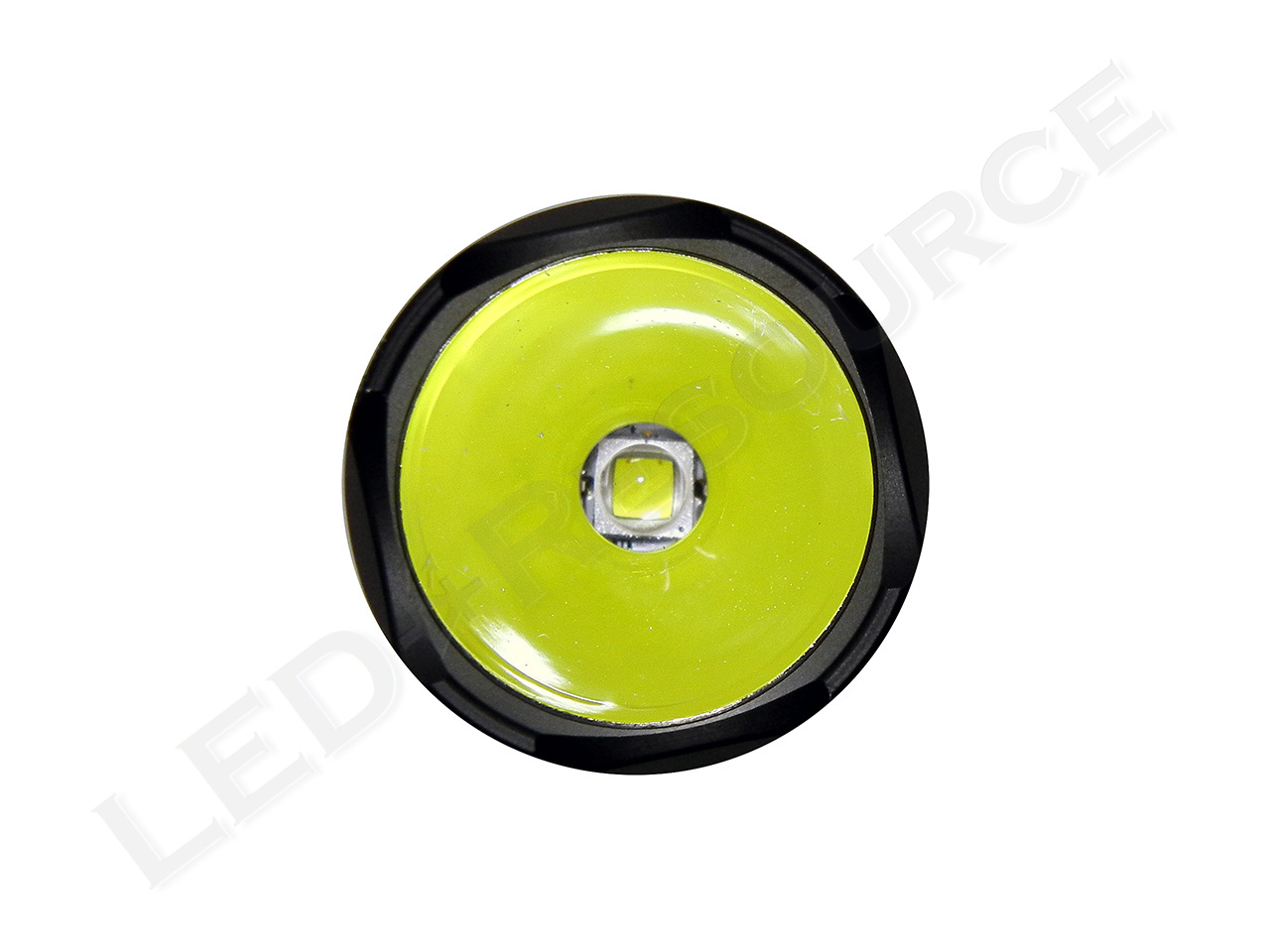

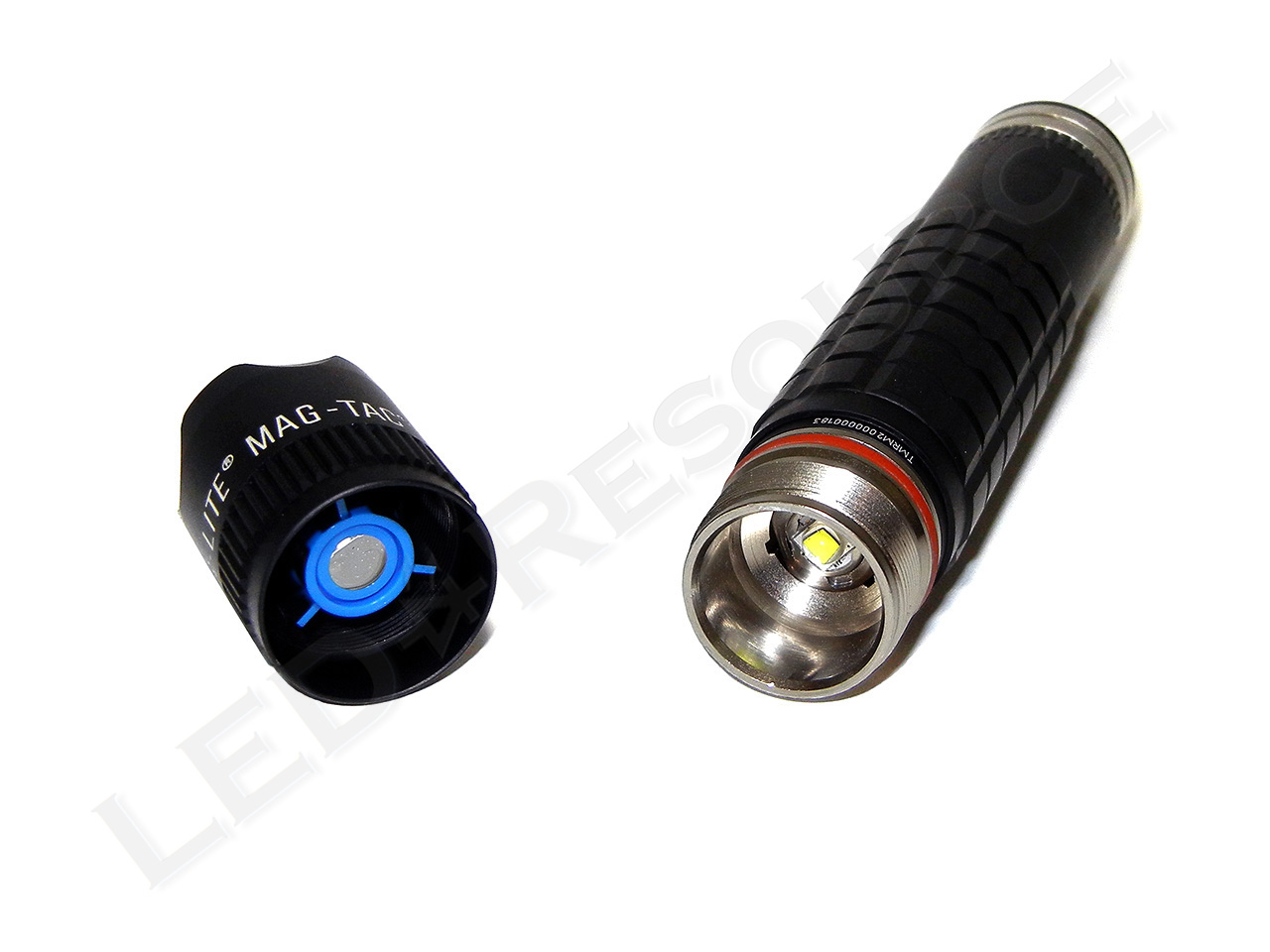

Behind the bezel is a polycarbonate window and smooth plastic reflector.

MAG-TAC_R_13 MAG-TAC_R_14

Here we can see the difference between the plain and crowned bezels; the crowned bezel protrudes by an additional 0.1” and is slightly tapered.

Body

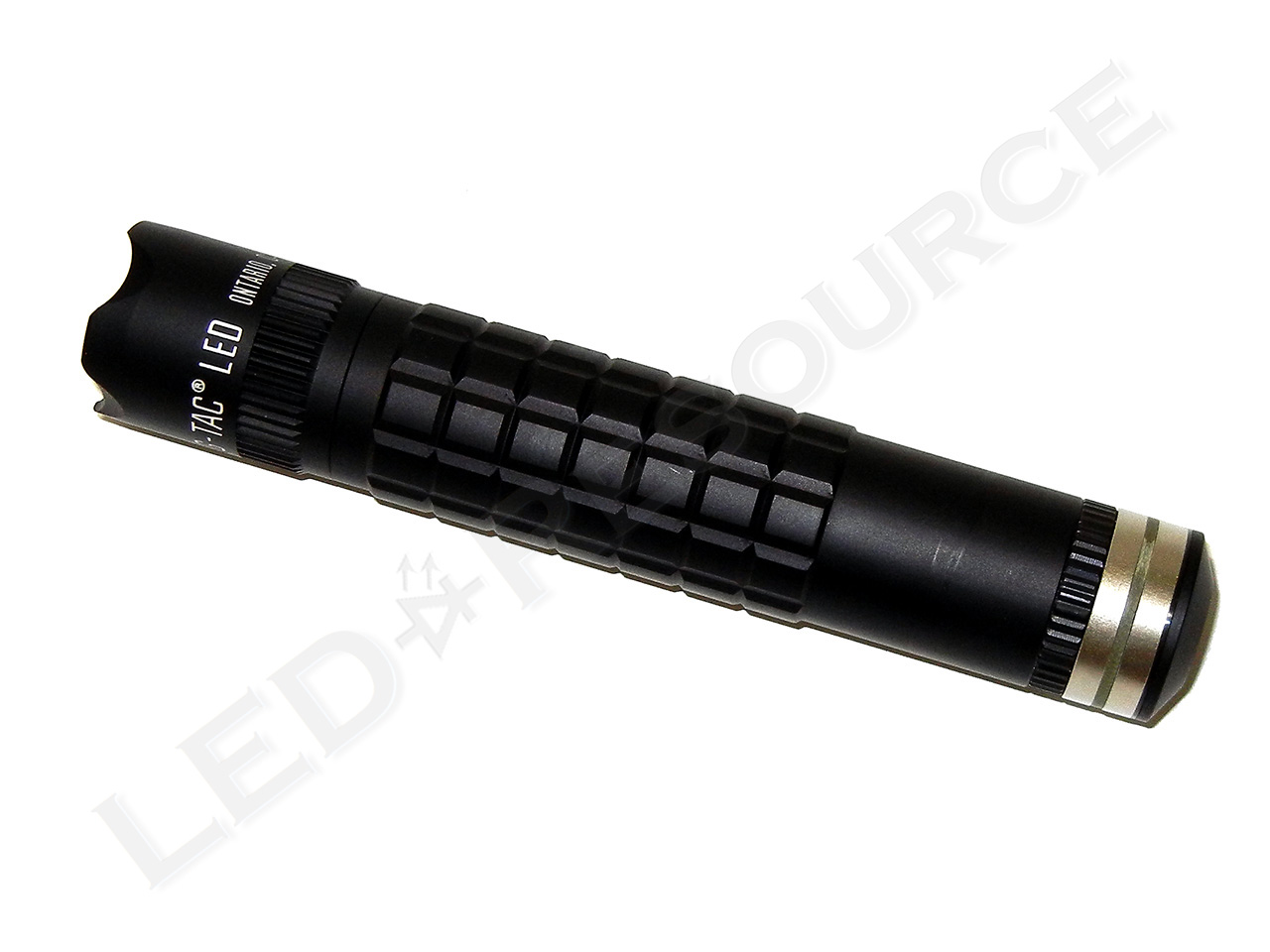

Grenade-grip knurling along the body is smooth and easy to grip.

MAG-TAC_R_15

Tail Cap

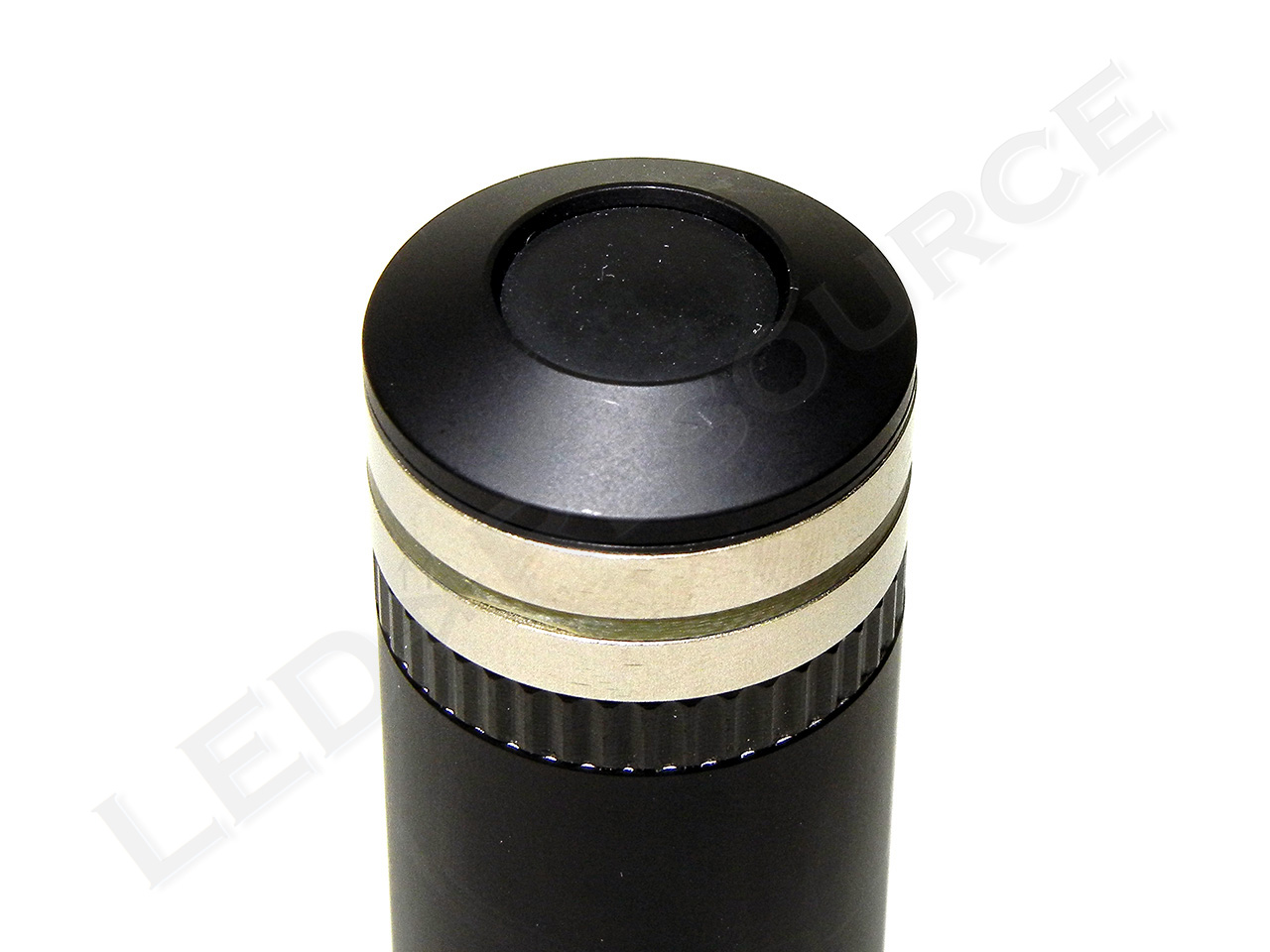

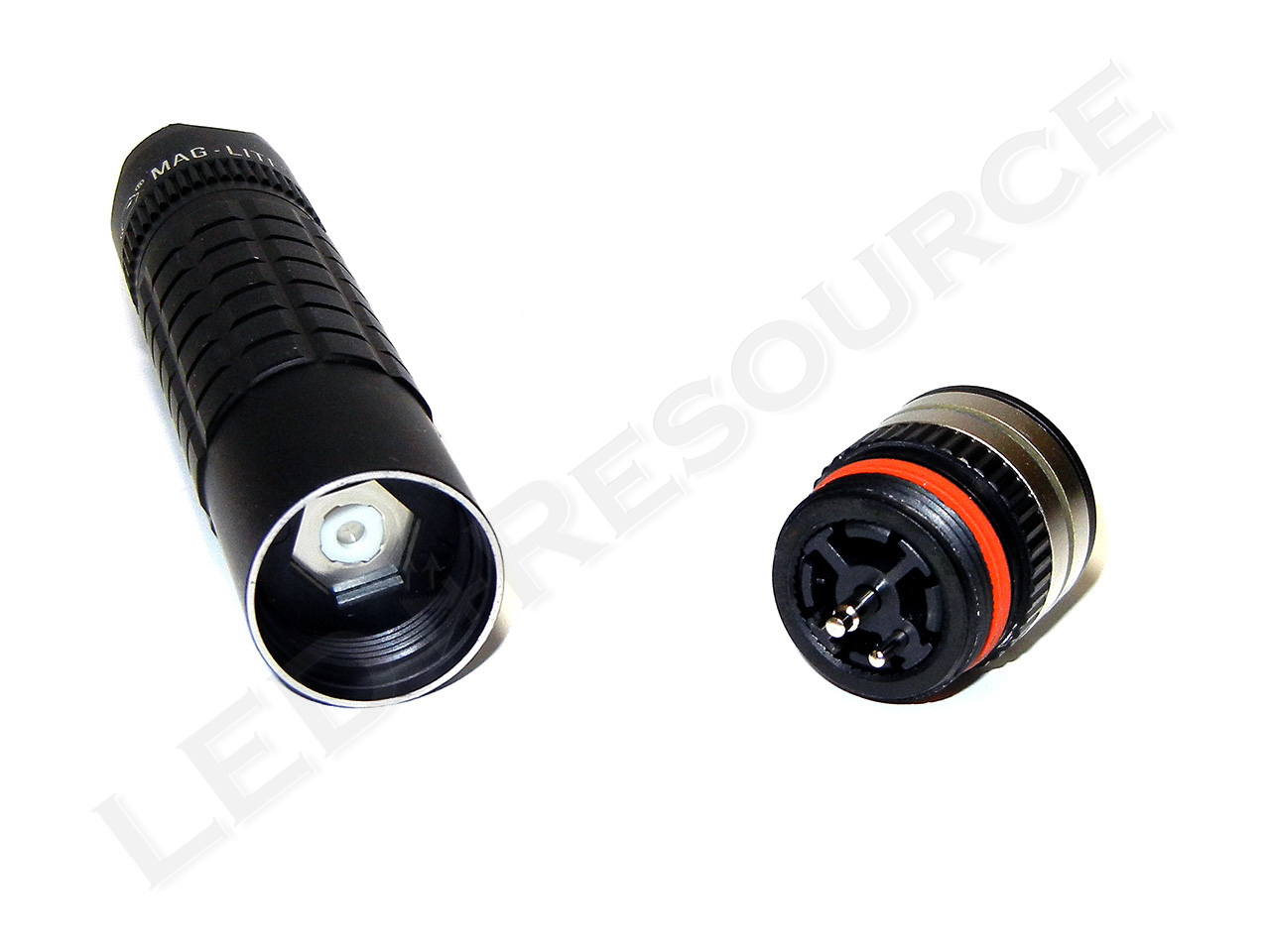

The charging bands are diode-protected to prevent short-circuits, and a band of knurling provides grip for removing the tail cap. The electronic tail switch is shrouded and covered with smooth black rubber.

MAG-TAC_R_17 MAG-TAC_R_16

Modes

Four functions can be activated using the tail switch on the MAG-TAC Rechargeable.

Momentary (543 lumens)
A single press will activate momentary output until the switch is released.

Full Power (543 lumens)
Two clicks (within 0.5 seconds of each other) will activate maximum output.

Power Save (112 lumens)
Three clicks (within 0.5 seconds of each other) will activate low output.

Strobe
Four clicks (within 0.5 seconds of each other) will activate strobe.

Off
Five clicks (within 0.5 seconds of each other) will turn the light off.

Performance

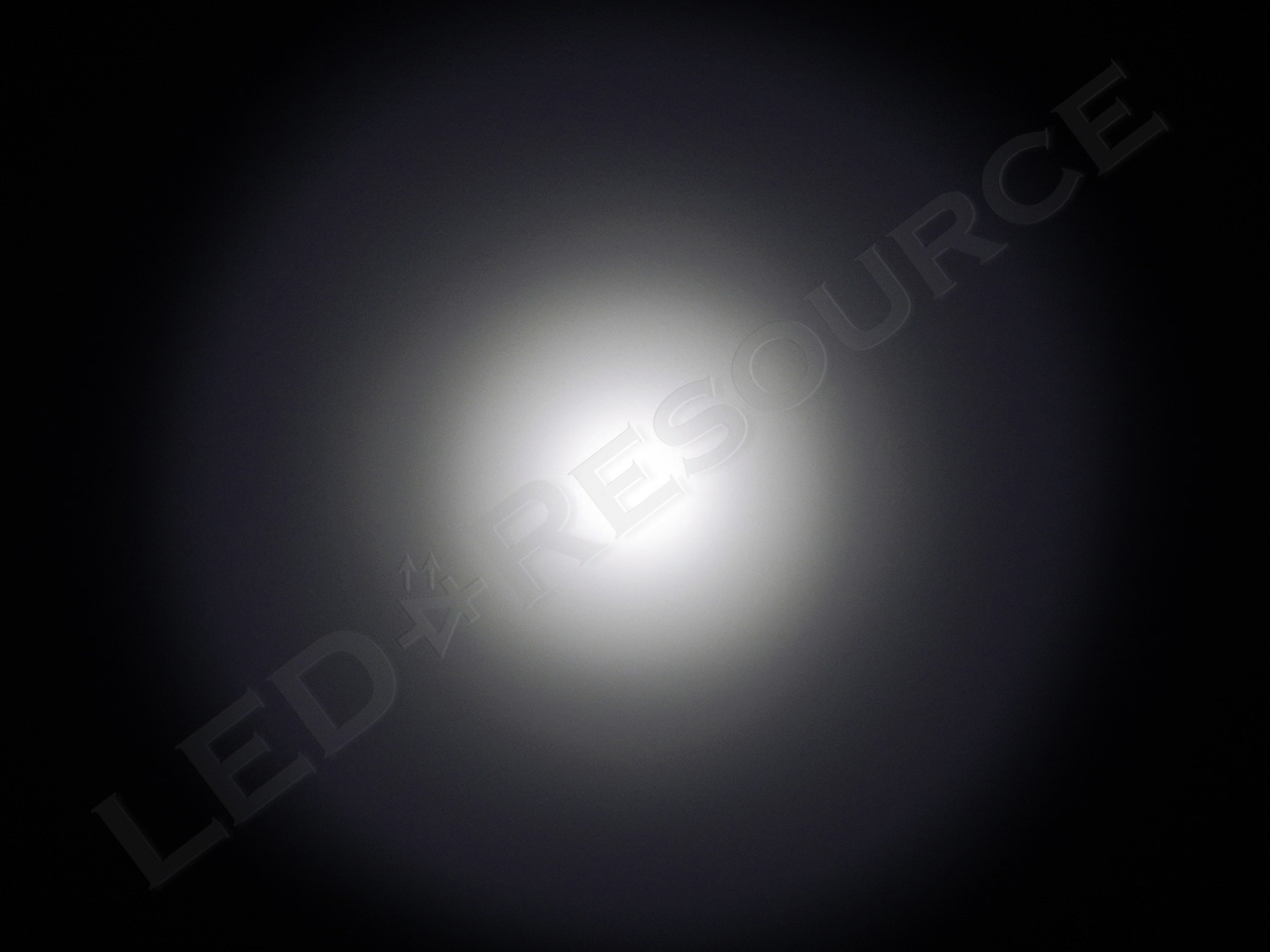

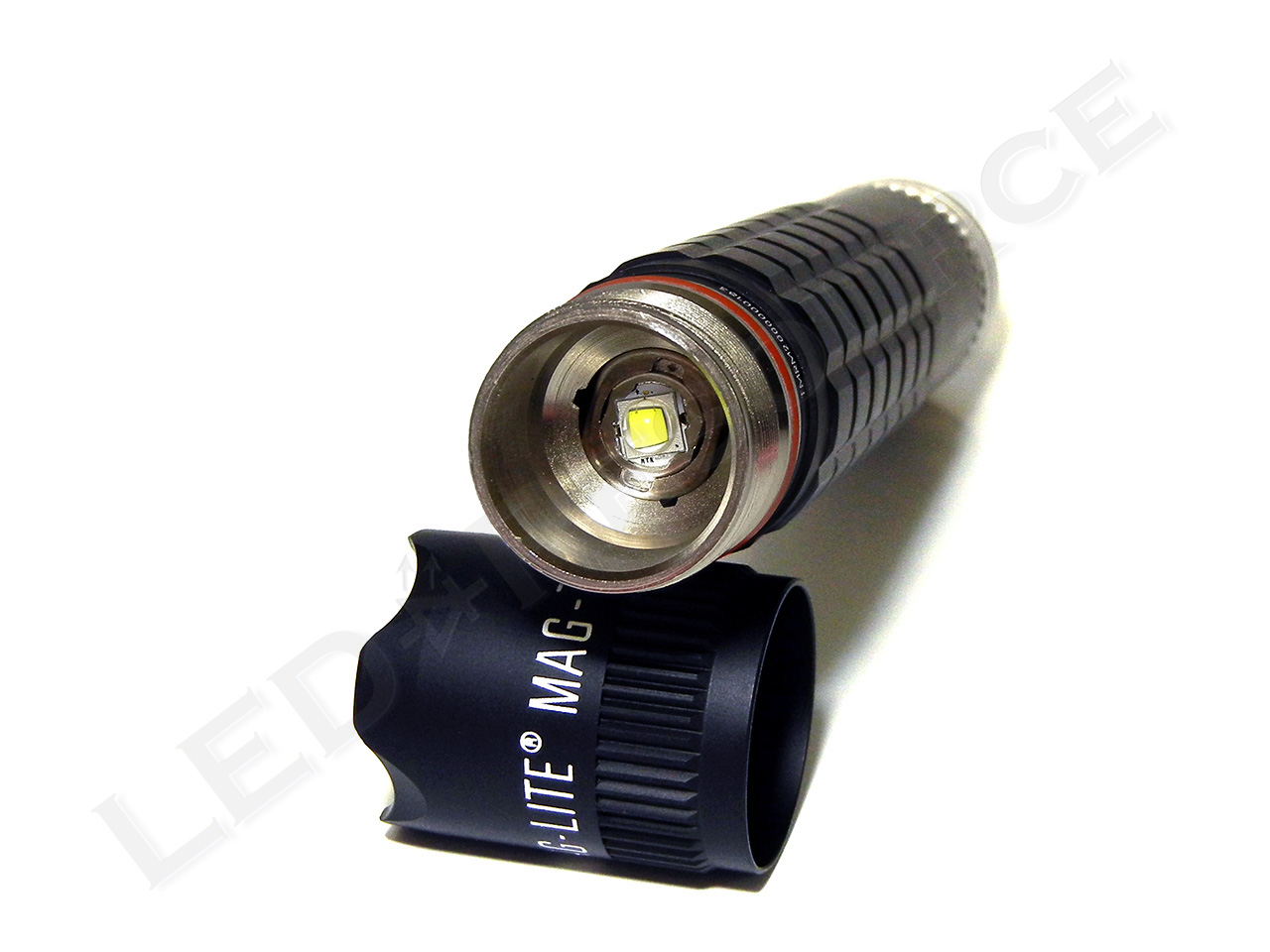

Using a Cree XM-L2 LED, the MAG-TAC Rechargeable has 543 lumens of maximum output (compared to 320 lumens for the MAG-TAC). The beam pattern is smooth and clean, with a larger hotspot and brighter flood area than the MAG-TAC.

MAG-TAC_R_22 MAG-TAC_R_23

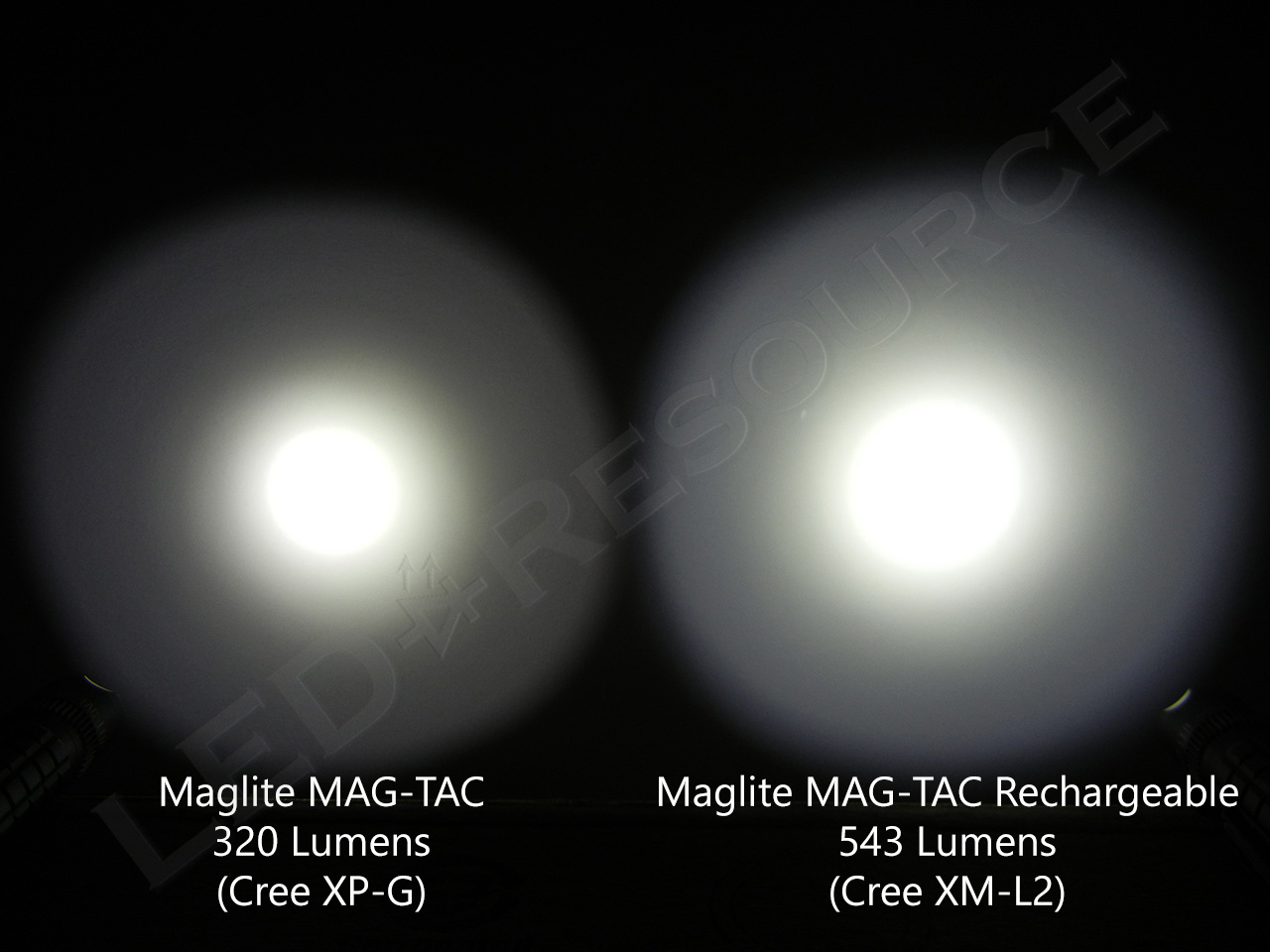

Compared to the Cree XP-G in the MAG-TAC, the Cree XM-L2 in the MAG-TAC Rechargeable has a larger surface area, resulting in a similar beam pattern. However, compared to other lights with the same LED but using larger reflectors, the MAG-TAC Rechargeable has less beam intensity and reach.

MAG-TAC_R_24

Runtime

If you haven’t read our article about runtime graphs and the ANSI FL1 Standard, please click here.

MAG-TAC_Rechargeable_Runtime

The step-down regulation used in the MAG-TAC Rechargeable aggressively reduces output to extend runtime, dropping down to only 60% output after five minutes of operation and then to 33% output after another 15 minutes. As such, the amount of time that the MAG-TAC actually produces more than 500 lumens is essentially momentary-only.

Accessories

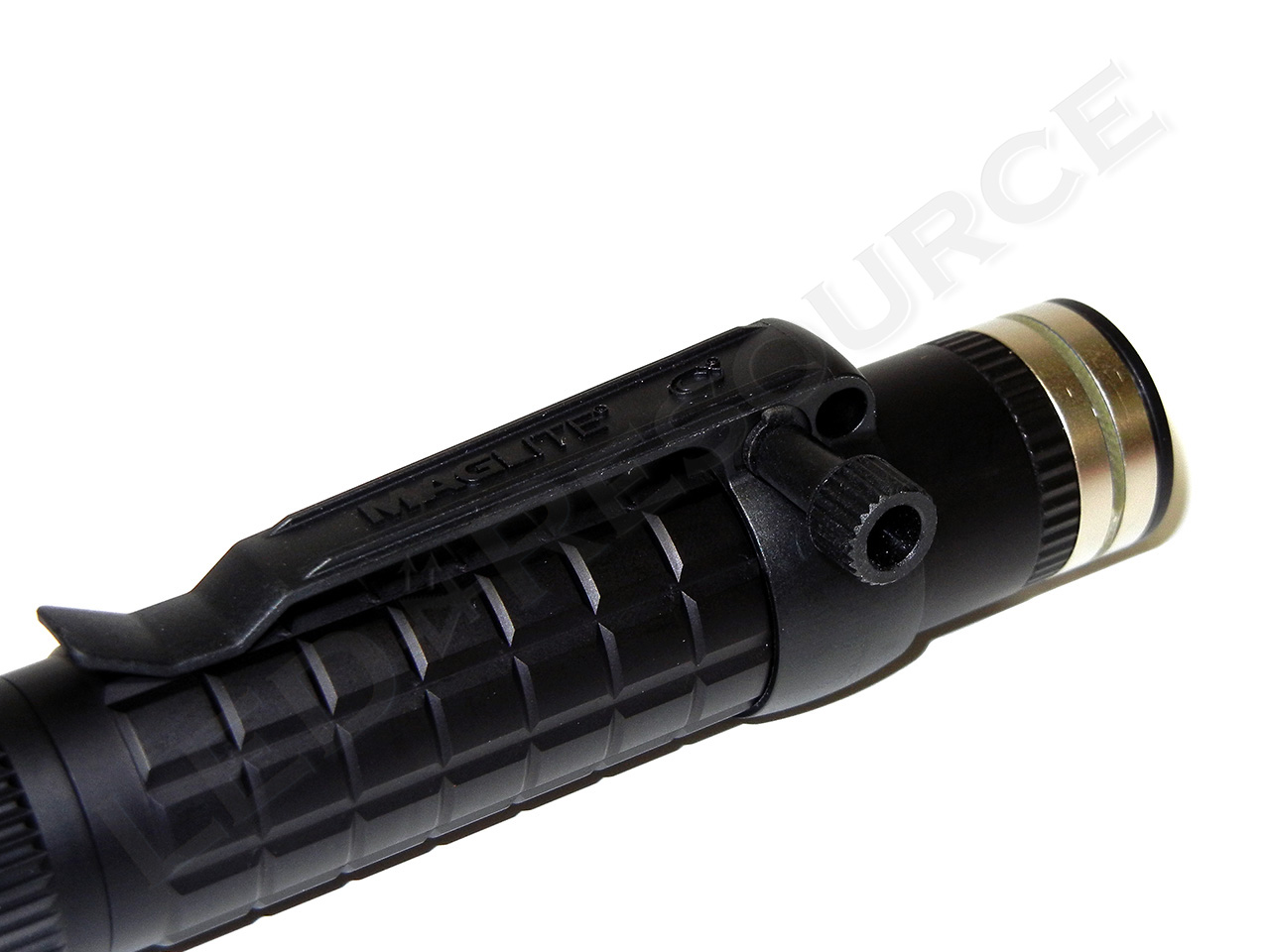

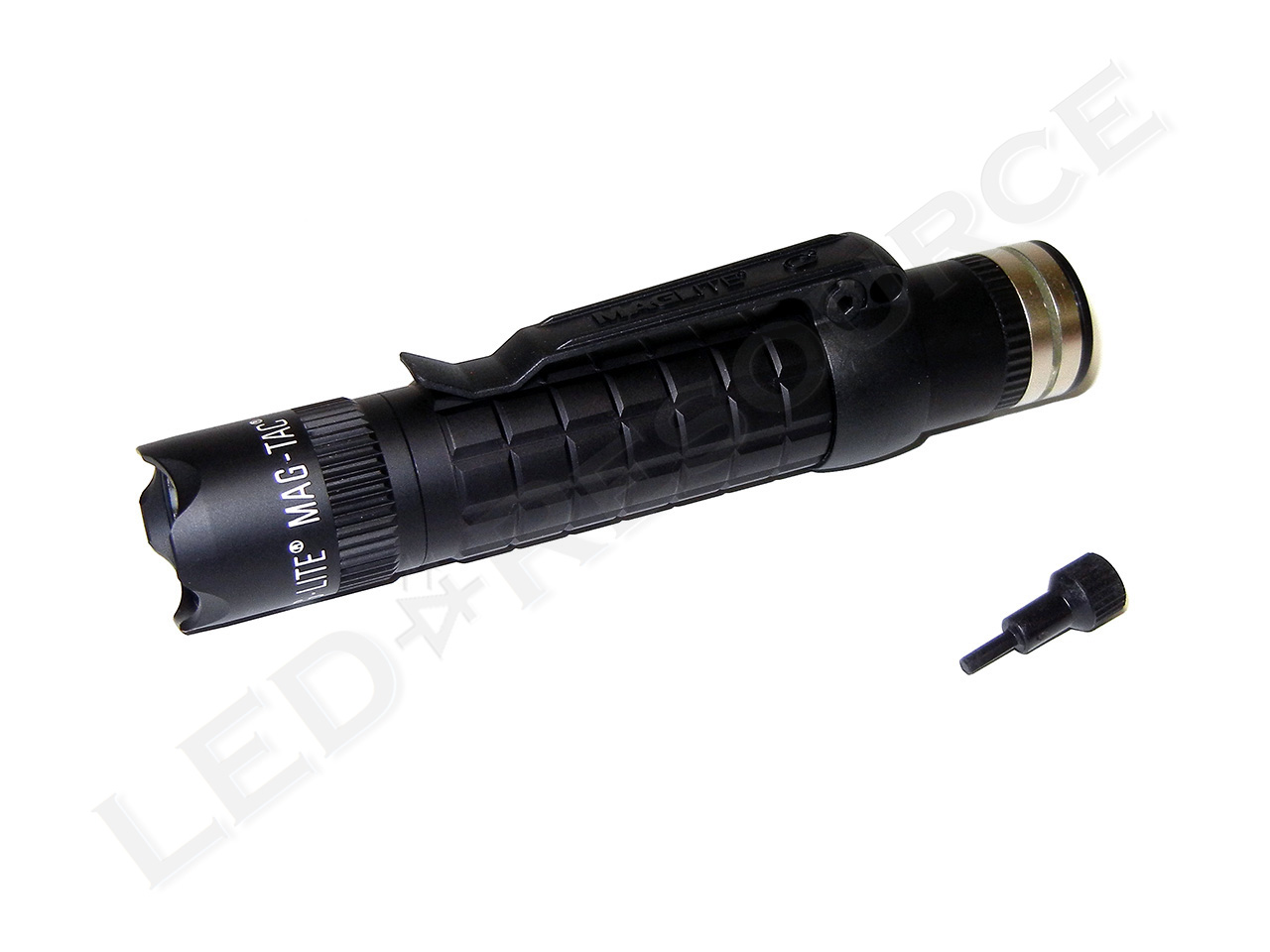

Included with the MAG-TAC is a pocket clip, which is secured using a plastic cam lock. With the tail cap removed (for easier installation), slide the pocket clip and hand-tighten using the included cam lock tool.

MAG-TAC_R_20 MAG-TAC_R_21

Conclusion

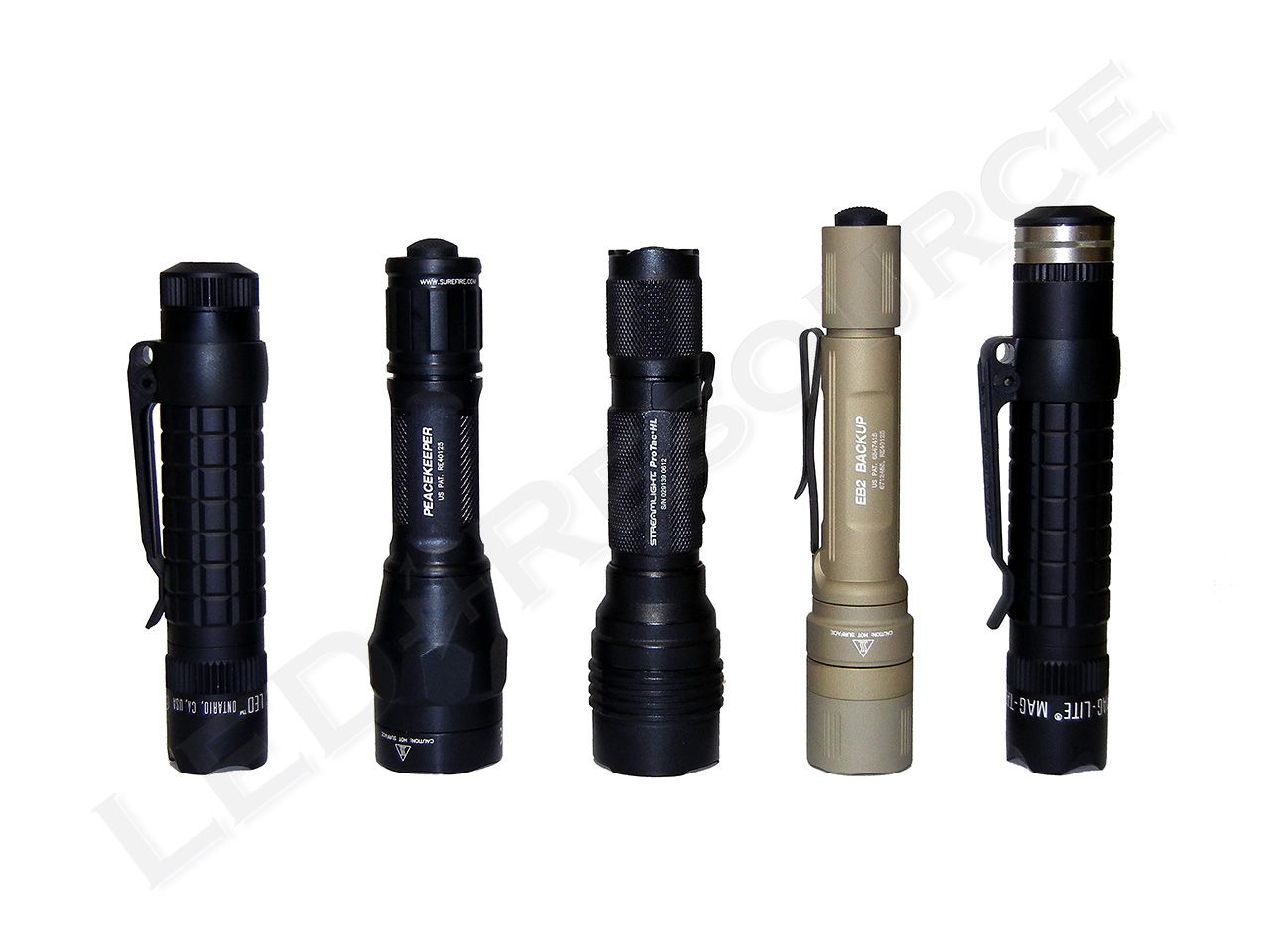

Lithium-phosphate rechargeable is a relatively new battery technology for rechargeable flashlights, and while they are safer to operate and capable of more charge cycles than lithium-ion, they are lacking when it comes to capacity. Typically, these batteries have about half the capacity as lithium-ion, but Maglite chose an aggressive step-down regulation scheme rather than reduced runtime. Simply put, 33% output after 20 minutes of continuous operation is unacceptable for tactical use. For home or outdoor use, the Maglite MAG-TAC Rechargeable is still a great choice with USB compatibility, long battery service life, and ease of charging.

MAG-TAC_R_25


Pros
  • Maximum output of 543 lumens
  • Multi-mode operation
  • Plain or crowned bezel
  • USB charging base
  • Optional pocket clip
  • Smooth beam pattern
Neutral
  • Lithium-phosphate battery with reduced capacity
  • Handling fee for lifetime warranty
Cons
  • Step-down regulation to 33% after 20 minutes
