Maglite MagCharger LED Review

MagChargerLED_01Maglite’s flagship rechargeable MagCharger flashlight has finally been released with a factory LED module, and this latest entry in the Maglite lineup has 680 lumens of output and an intense 43,667 candela spot beam. The MagCharger LED uses a D-sized NiMH battery pack and is a full-size flashlight with 4.5 hours of regulated runtime on high and 16 hours on low. Five modes, including full power, power save, strobe, SOS, and momentary are organized into user-programmable function sets.

Key Specifications

  • Output: 680 lumens high, 170 lumens low
  • Intensity: 43,667 candela
  • Runtime: 4h 30min high, 16h low
  • Battery: NiMH Rechargeable Battery Pack
  • Length: 12.6″
  • Diameter: 2.3″ bezel, 1.5″ body
  • Weight with Batteries: 28 oz.
  • Warranty: Limited Lifetime with $18 Handling Fee
  • MSRP: $149.99
  • Actual Pricing: ~$125

Pricing & Contents

MSRP for the MagCharger LED is $149.99, and the light is only available in black. Several configurations are available depending on AC plug type, and pricing is around $125 for the most common RL1019 package.

MagChargerLED_02

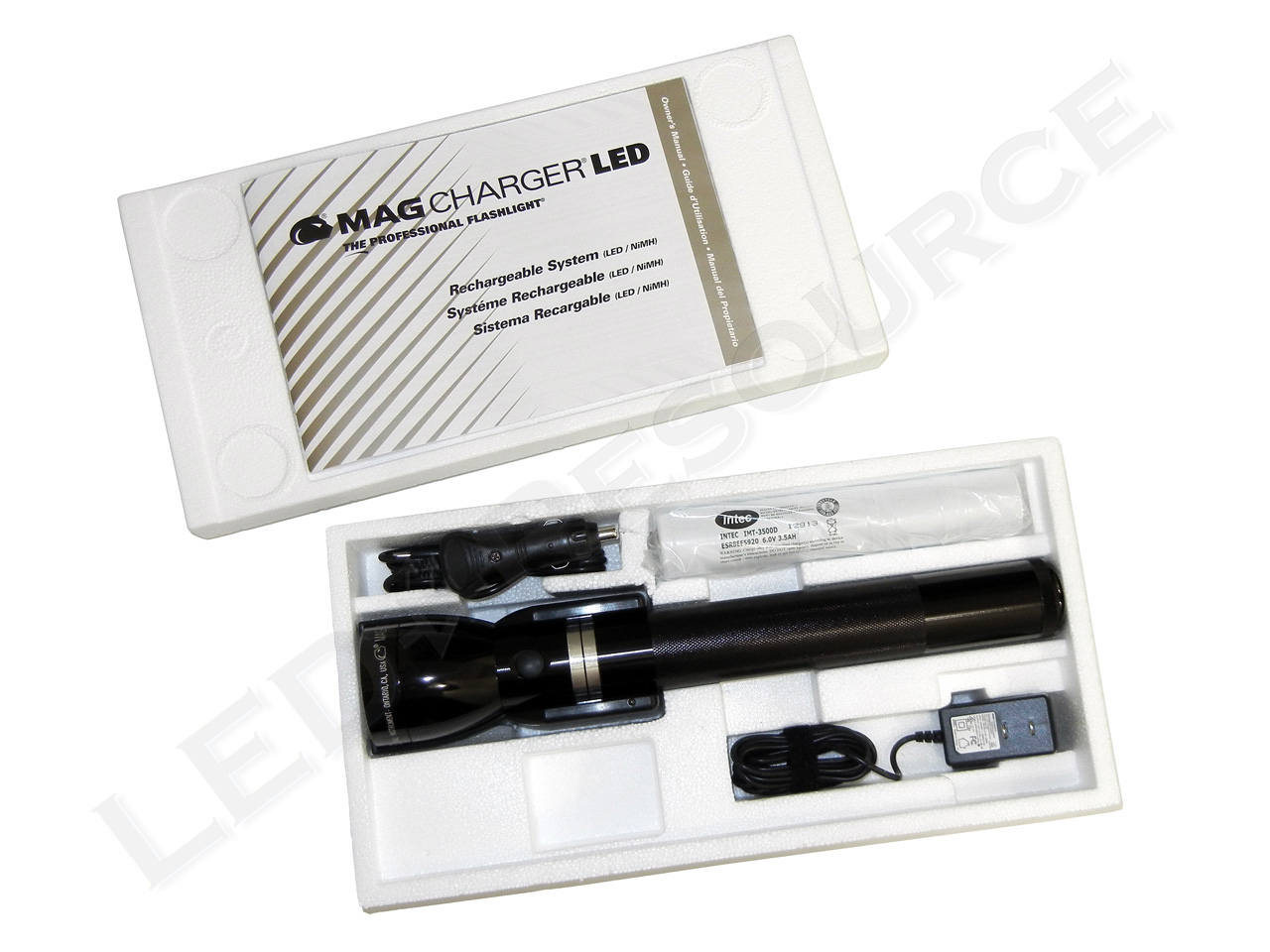

Included in the box are: Maglite MagCharger LED, NiMH rechargeable battery, charging cradle, AC adapter (100-240V), DC car adapter, and user manual.

Batteries

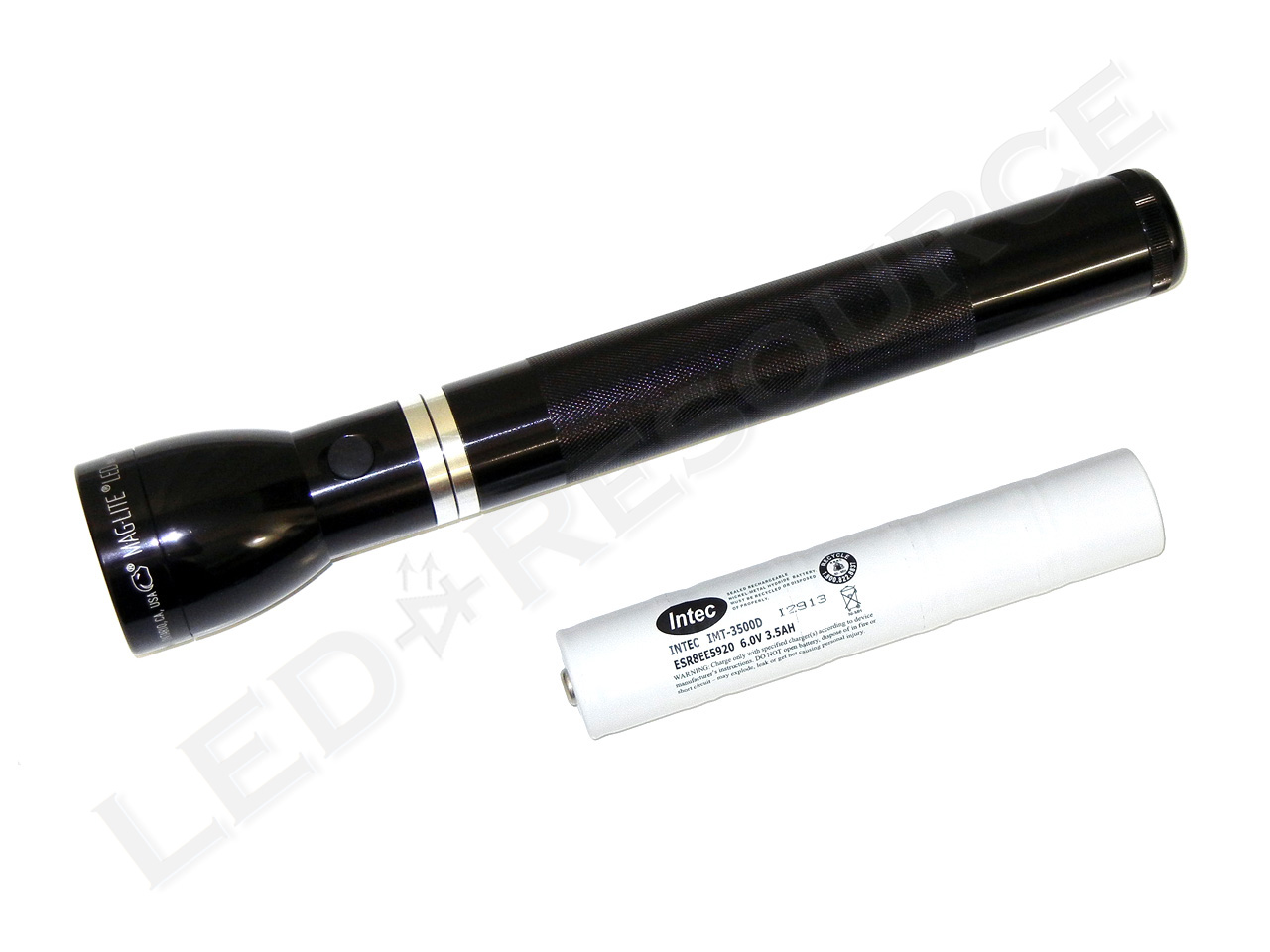

The MagCharger LED uses the same rechargeable battery pack as the updated incandescent MagCharger, which has a 3,500mAh NiMH battery pack and rated for 1,000 cycles. Based on data from the OEM datasheet, this is not low a self-discharge NiMH battery pack and should be charged every couple of months to retain adequate charge.

MagChargerLED_03

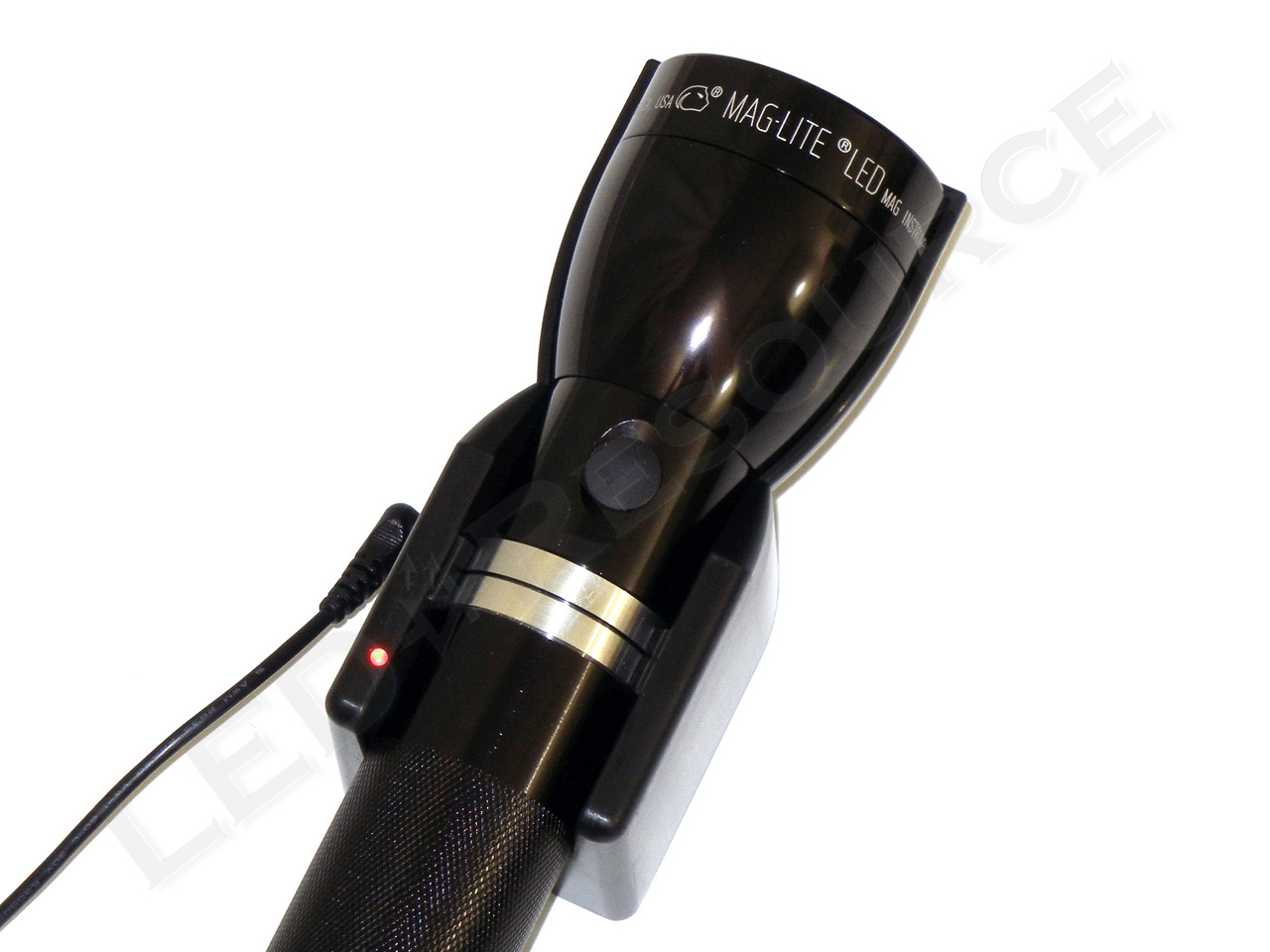

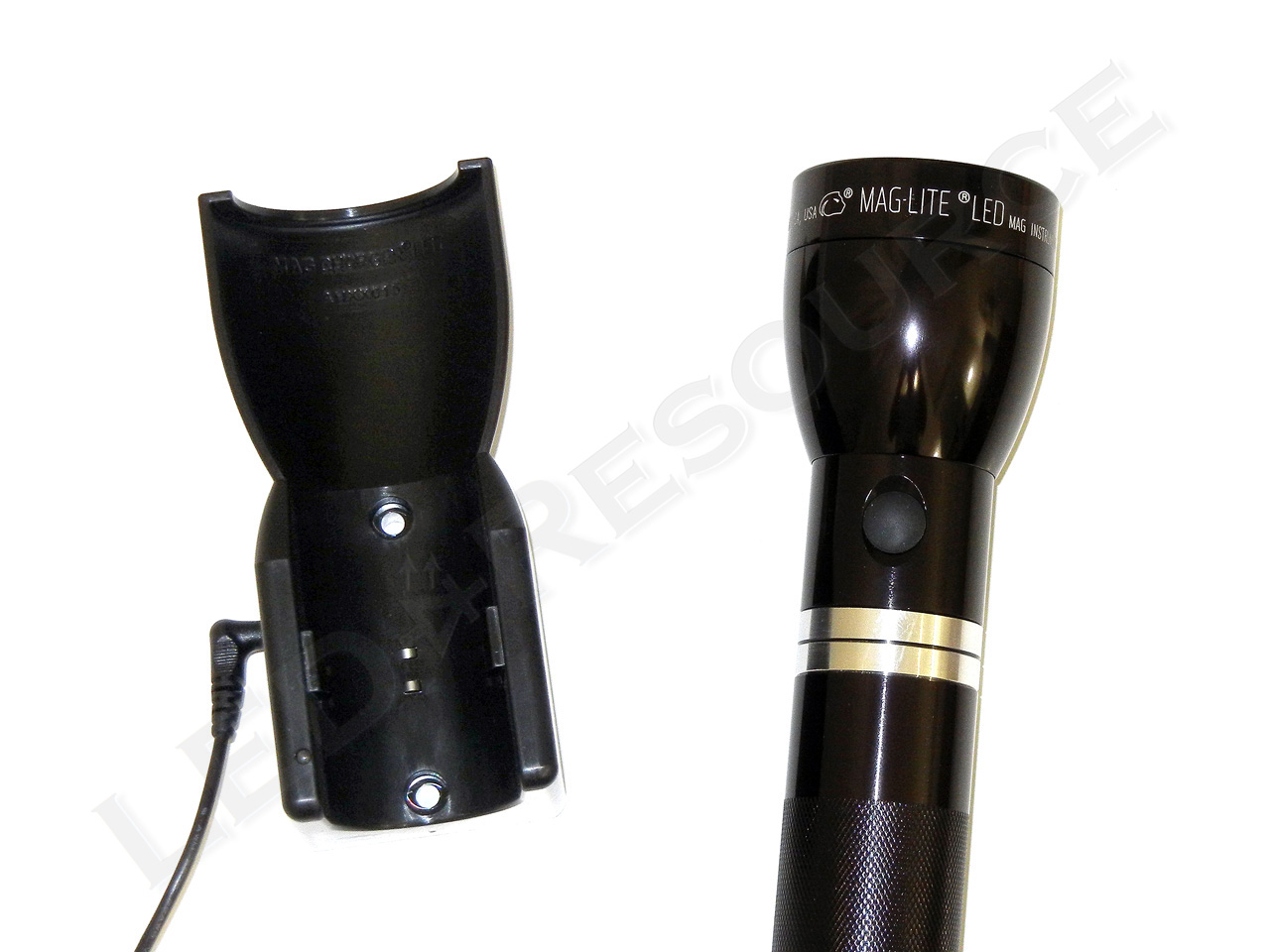

To charge the light, insert the head of the light into the charging cradle, and push down until the barrel locks in place. Charging is constant current and continuous, which can take up to 20 hours. The light can be left in the cradle indefinitely, but to prolong battery life, this is not recommended for long periods of inactivity.

MagChargerLED_04 MagChargerLED_05

The Light

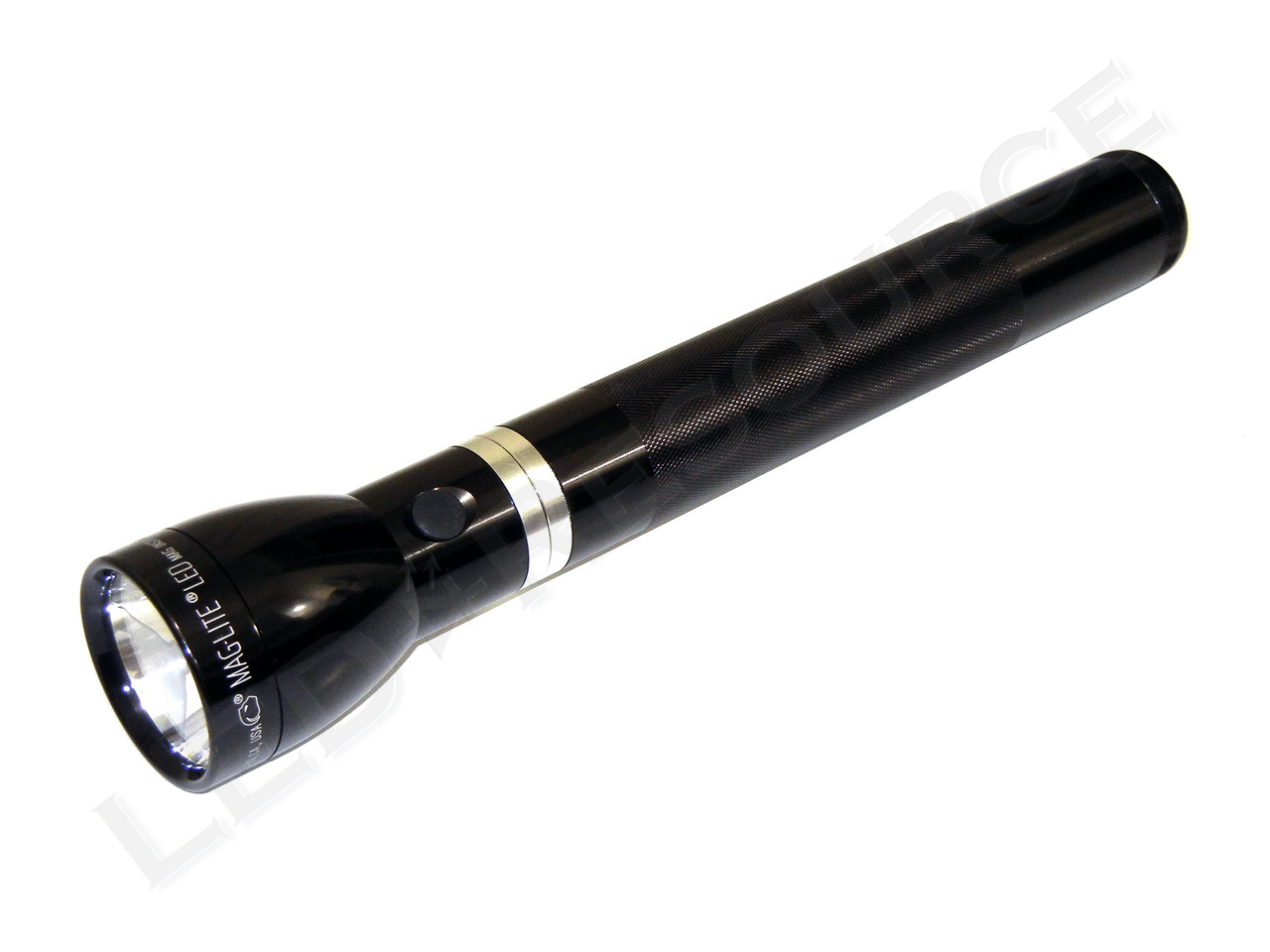

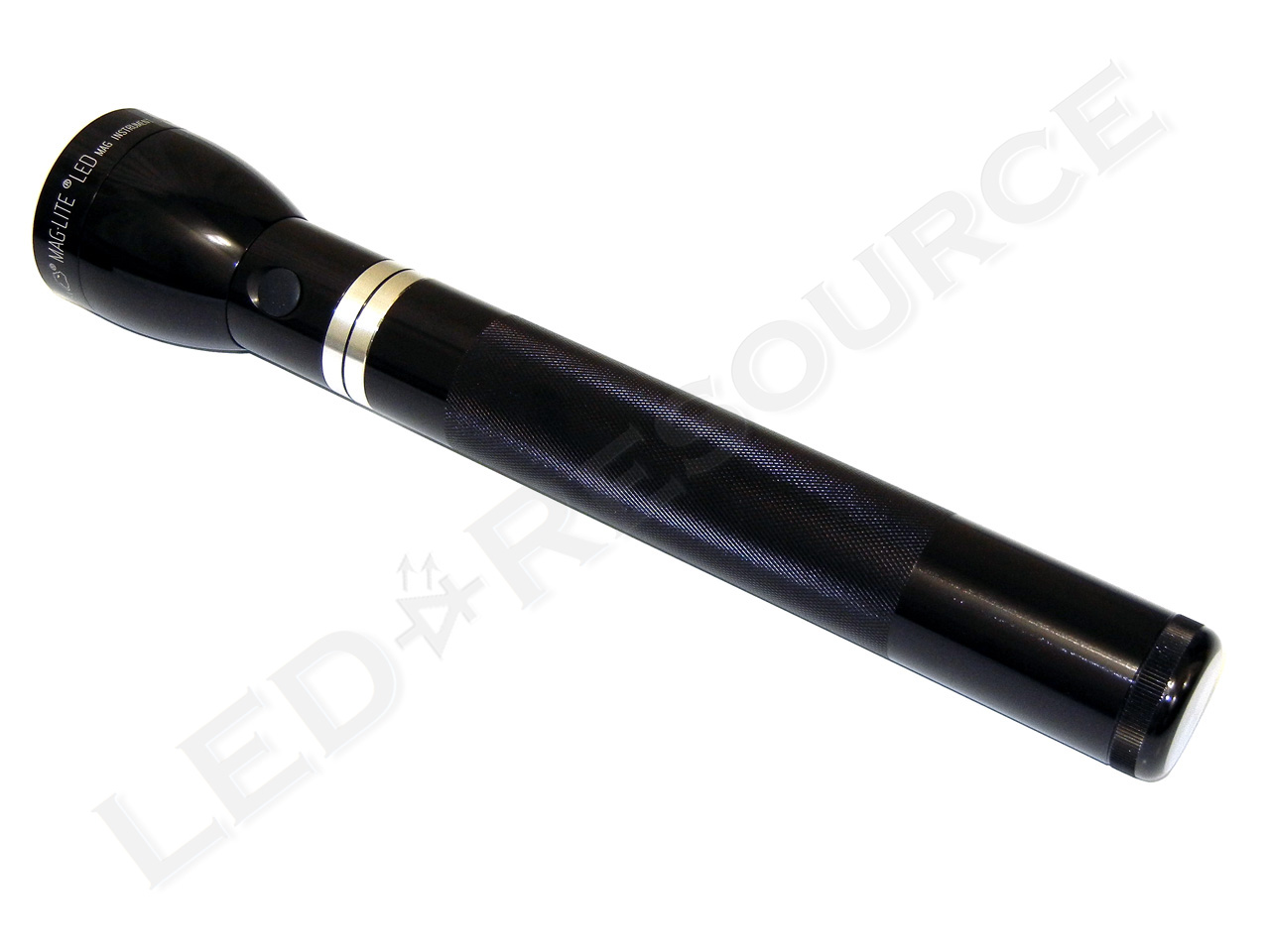

On the exterior, the MagCharger LED is approximately the size of a Maglite 3-cell D and nearly indistinguishable from the incandescent version. This full-sized light has a type-III anodized finish to protect against scratches and corrosion.

MagChargerLED_06 MagChargerLED_07

Head

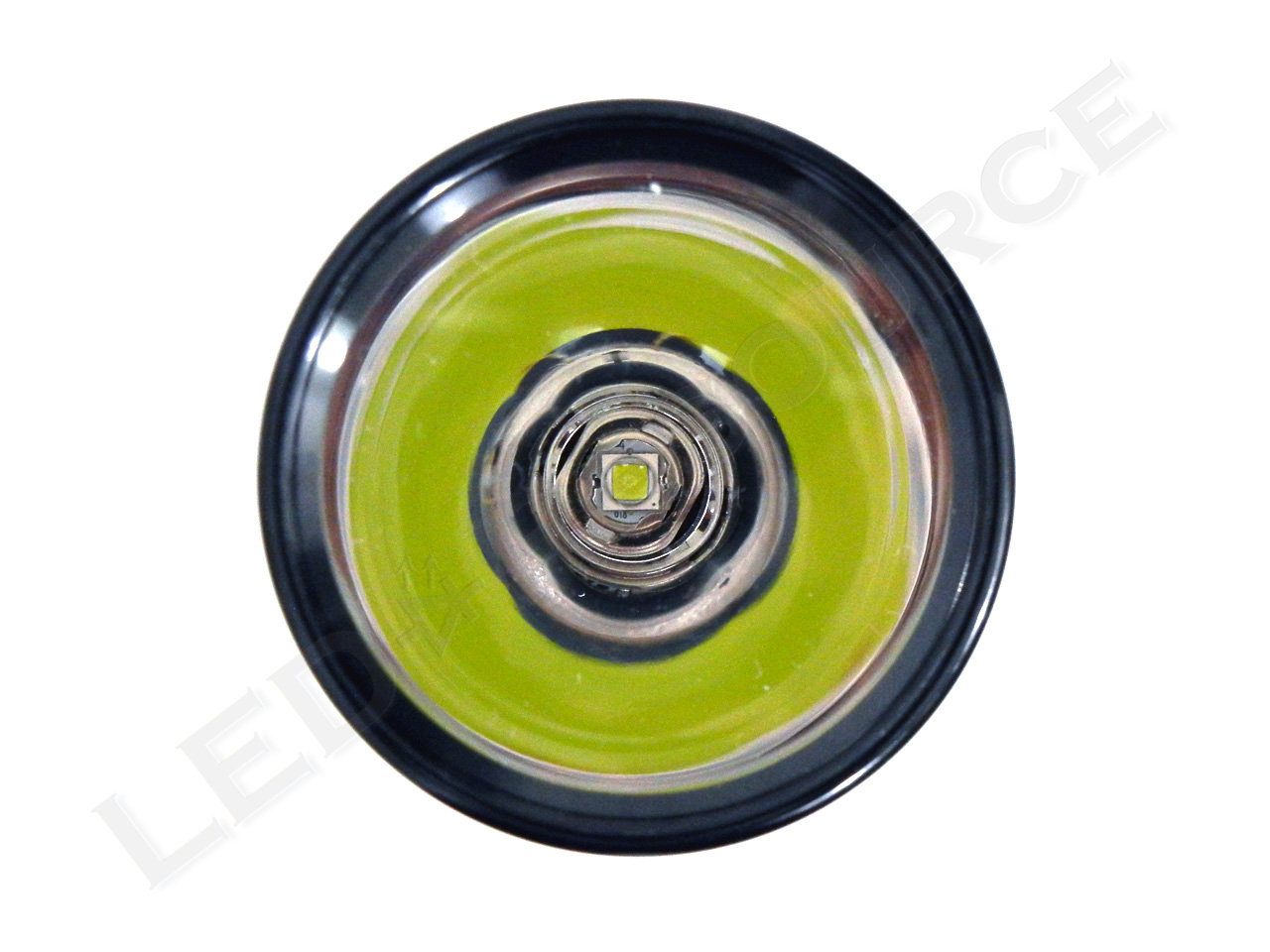

The head features a polycarbonate window and a smooth reflector. Focusing takes less than a quarter turn from end to end, going from flood to spot to flood.

MagChargerLED_08 MagChargerLED_09

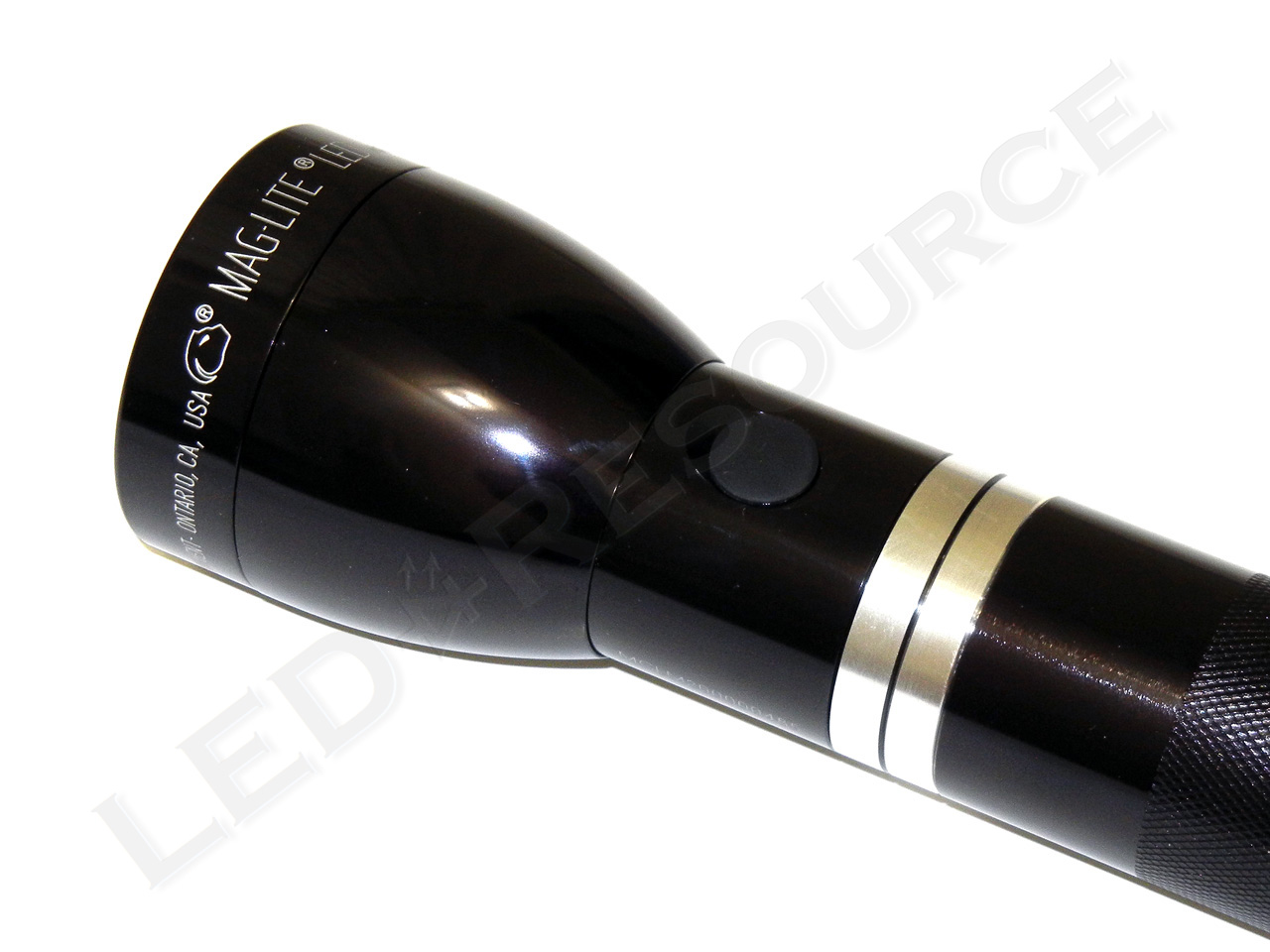

The head mounted switch is an electronic switch similar to that of the XL- and ML-series lights.

Body

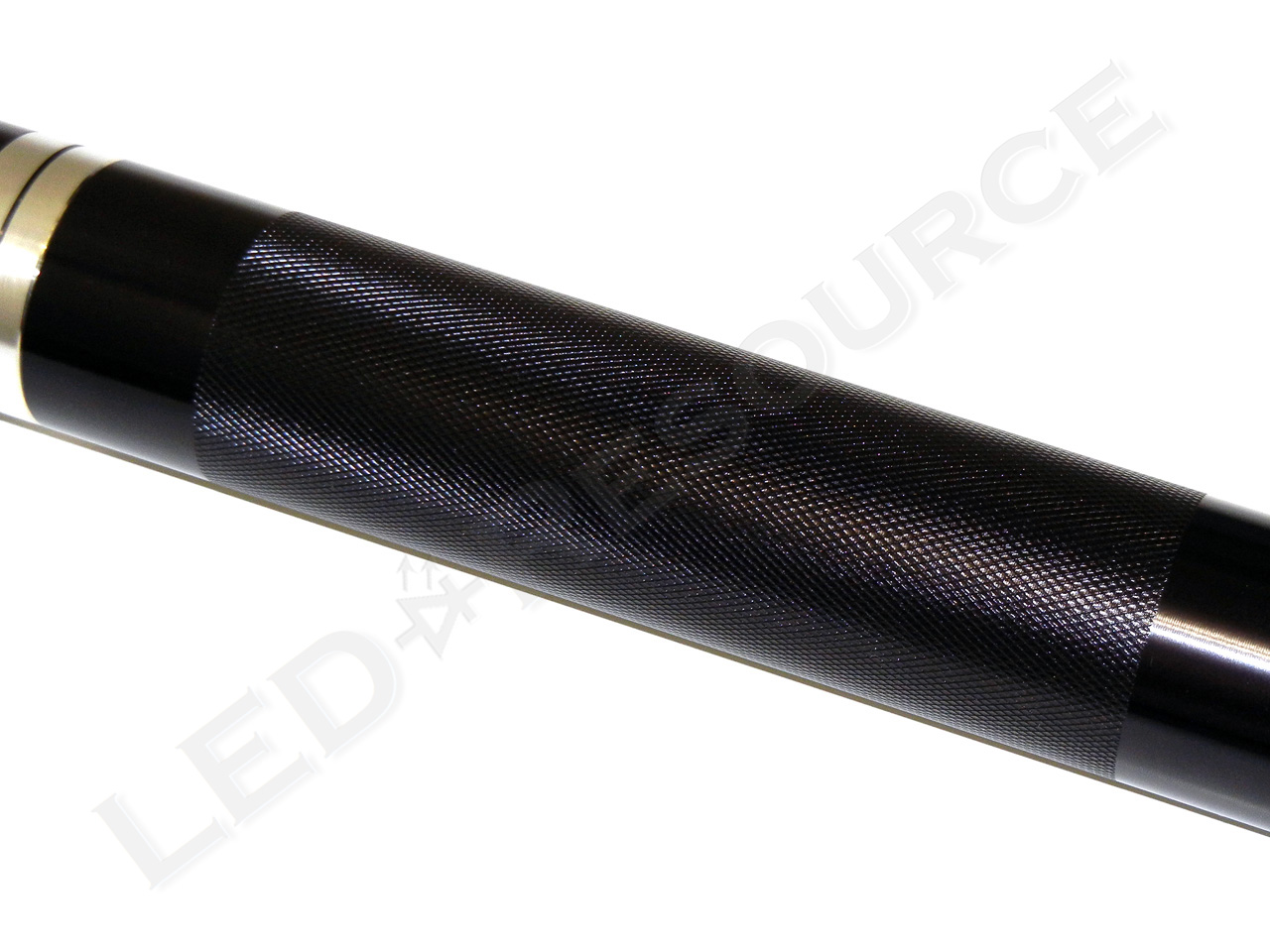

The MagCharger’s distinctive charging bands are O-ring sealed and diode-protected to prevent accidental short circuiting, and smooth diamond knurling covers most of the body.

MagChargerLED_10

Tail Cap

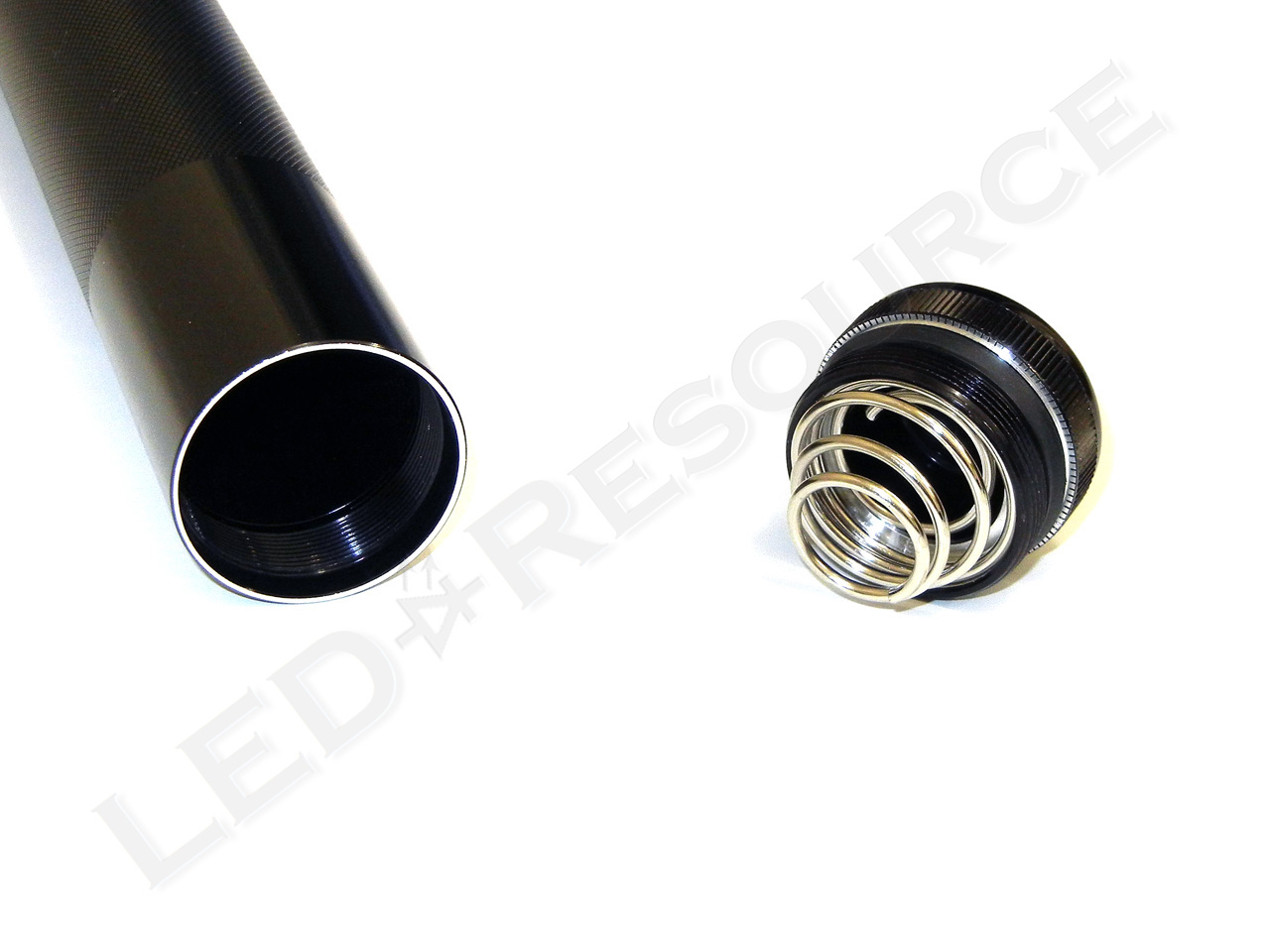

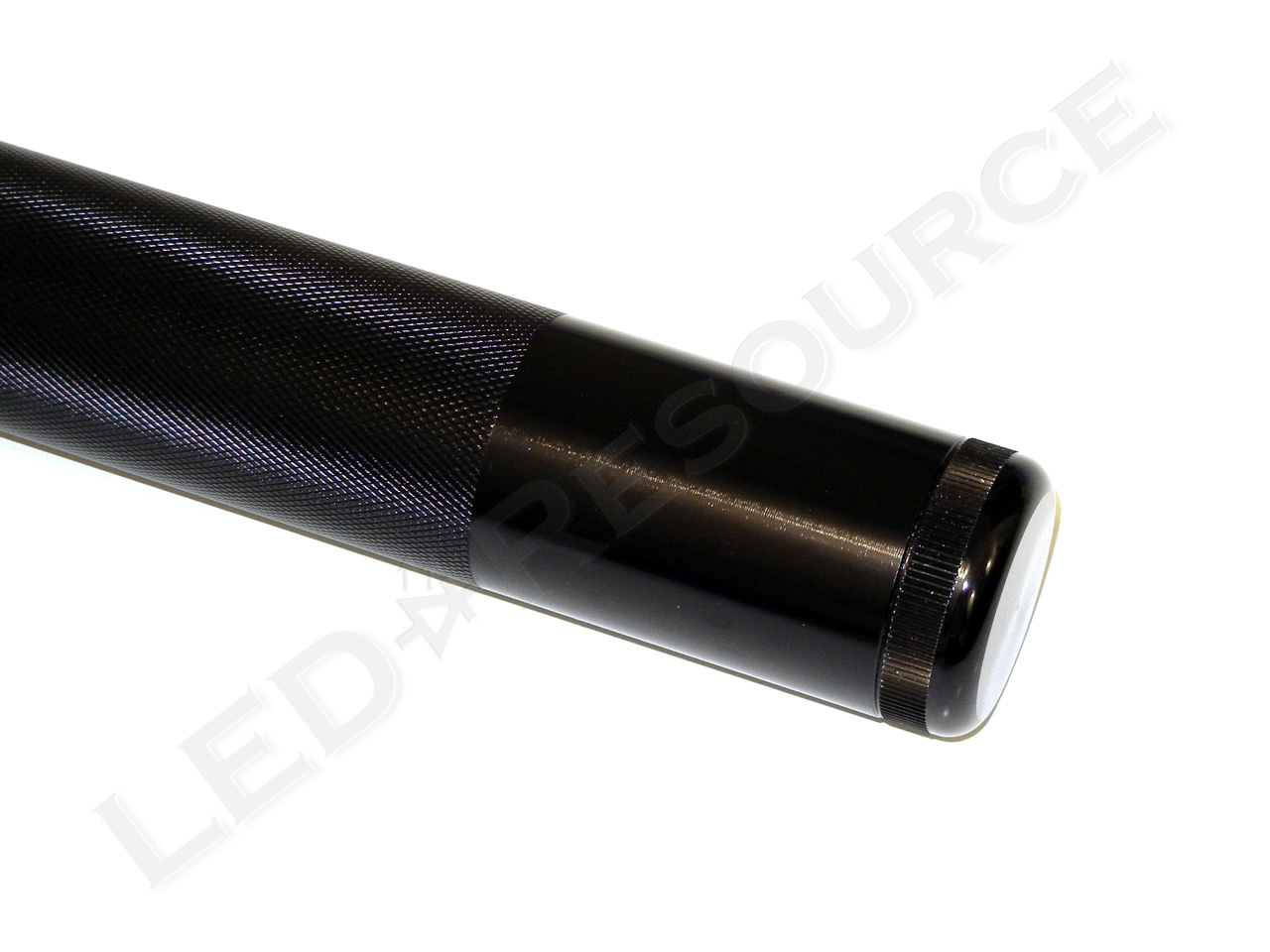

A band of knurling is found on the tail cap, and the threads are anodized so the light can be locked out with a quarter turn of the tailcap.

MagChargerLED_11 MagChargerLED_12

Modes

Five modes, which are arranged into four function sets, are available for the user to choose from.

Full Power
Maximum output (100%).

Power Save
Reduced output (25%).

Strobe
The 12Hz strobe feature is designed for disorienting or getting somebody’s attention.

SOS
SOS is the International Morse Code Distress Signal: three short flashes, three long flashes, and three short flashes.

Momentary
If momentary is enabled, the light turns off when the switch is released, and it must be pressed twice in quick succession to activate constant-on.

For all modes except for momentary, a single click will turn the light off.

Function Sets

To change the function set, start with the tailcap slightly unscrewed so that the light does not turn on when the switch is pressed. Press and hold the switch while screwing on the tailcap, and once the tailcap is screwed on all the way, the light will start flashing. The number of flashes corresponds to a function set’s number, which are cycled. Releasing the switch selects the function set.

Function Set 1 (Default)
Full Power, Power Save, Strobe.

Function Set 2
Full Power, Power Save, SOS.

Function Set 3
Momentary, Full Power, Power Save.

Function Set 4
Momentary, Full Power, Strobe.

Performance

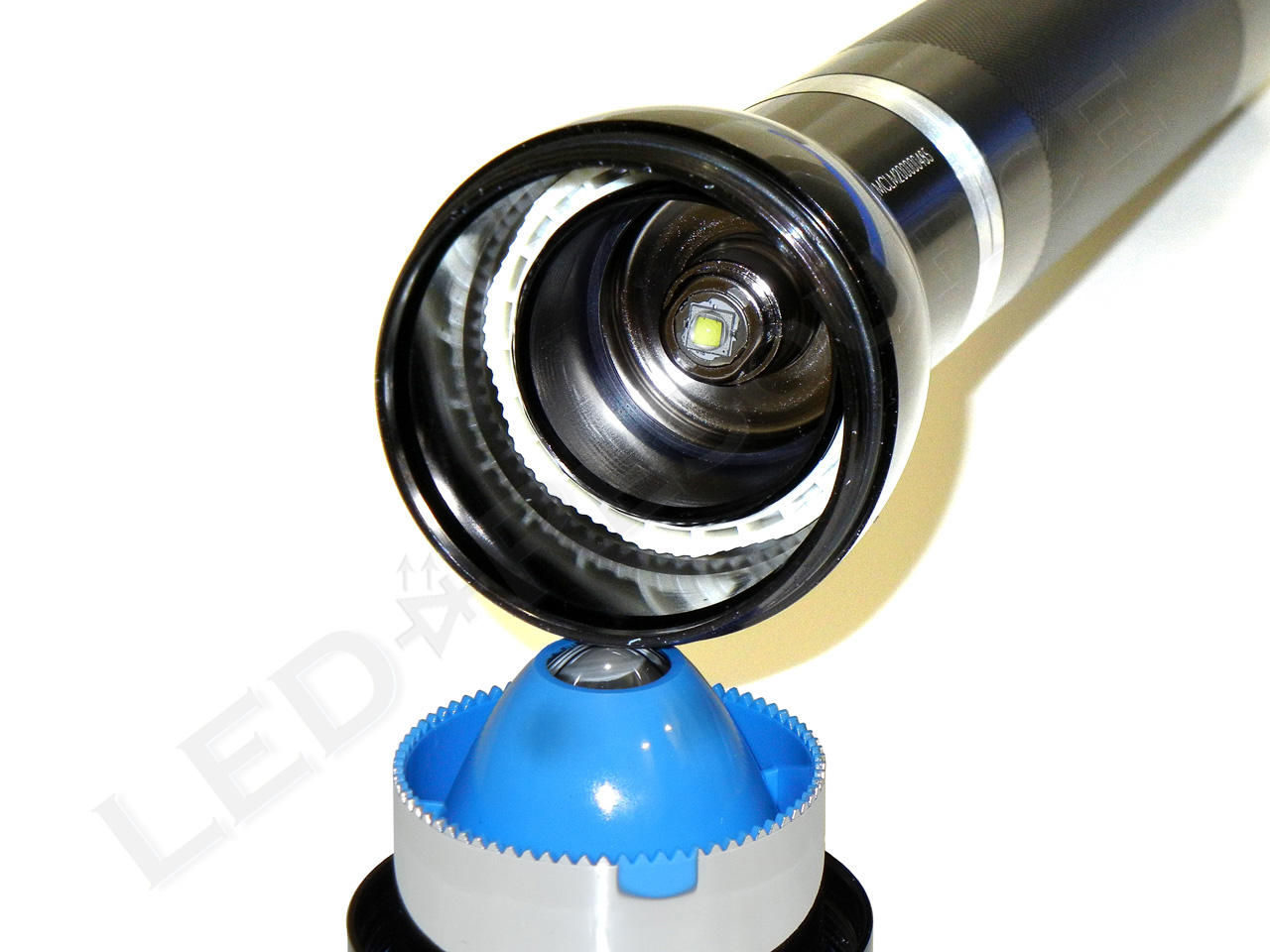

Using the latest Cree XM-L2 LED, the MagCharger LED is rated for 680 lumens. The redesigned focusing assembly eliminates “donut holes” in the beam pattern and makes focusing quicker.

MagChargerLED_13 MagChargerLED_14

On the two ends of the focusing cam are two distinct flood beams – a slightly larger hotspot with a defined cutoff (left) and a smoother flood pattern (right).

MagChargerLED_15 MagChargerLED_16

There is a standby current drain of 673 µA (0.673 mA), which combined with NiMH self-discharge, will require the light to be charged every 3-4 months if unused.

Runtime

If you haven’t read our article about runtime graphs and the ANSI FL1 Standard, please click here.

MagCharger_LED_Runtime

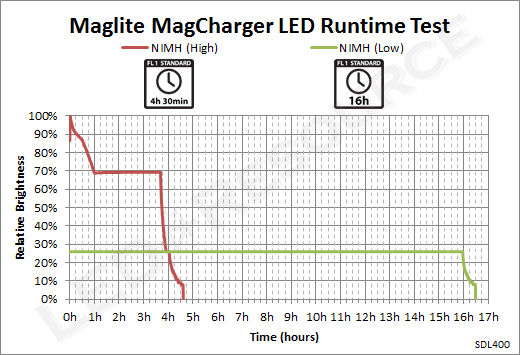

The MagCharger LED steps down to 70% after the first hour and maintains a steady output for almost three more hours. ANSI runtime of the MagCharger LED is 4h 30mins, which is longer than most ultra-high output lights that typically have around two hours of runtime.

Conclusion

Full-sized lights are less of a common sight nowadays, but with its large NiMH rechargeable battery, the MagCharger LED has roughly twice the runtime of a similar mid-sized light. Increased runtime is beneficial for many professional usage scenarios where it may not be possible or desirable to charge batteries, and 4h 30min on maximum output is plenty for most flashlight users. This is also a light that is easily customizable with an option for momentary operation, as well as flashing strobe or SOS modes. For users coming from alkaline D-cell lights or the incandescent MagCharger, the new Maglite MagCharger LED will easily outperform many lights both small and large.


Pros Cons
  • Maximum output of 680 lumens
  • Improved flood-to-spot focusing
  • Long regulated runtime
  • User-programmable function sets
  • Lifetime warranty
  • Standby current drain
  • Large and heavy
  • Polycarbonate window
  • Handling Fee for warranty

Related Links

Maglite MagCharger LED Product Page

Rechargeable Flashlight Comparison on LED-Resource
